M12 Encapsulated Cables: Building Tough, Reliable Nerve Endings for Sensor Systems In industrial automation, rail transit and smart agriculture, sensors serve as system “senses” capturing real-time physical changes. M12 encapsulated cables, with their integrated robust design and excellent environmental adaptability, are indispensable for stable, accurate transmission of these critical signals. Core Advantages: Why Encapsulated Design Is Ideal for Sensors? M12 connectors are industrial standards for their compact threaded lock, IP67/IP69K protection and vibration resistance. Encapsulated (molded/pre-cast) variants boost performance via factory-integrated injection molding of connectors and cables: Ultimate Sealing & Durability: The encapsulation forms a seamless barrier at the connector-cable junction, blocking moisture, dust and oil, and protecting sensors in harsh environments with extreme temperatures, impact or vibration. Superior Stress Relief: Acting as an efficient strain relief, the encapsulation disperses bending/pulling stress on internal contacts, enhancing connection reliability in dynamic applications. Enhanced System Reliability: Integrated design eliminates on-site installation risks, reducing loose-connection failures and maintenance needs for continuous sensor network operation. Key Applications: Typical Scenarios for Encapsulated M12 Cables Their robust protection and durability make M12 encapsulated cables ideal for sensor connections in harsh environments: Factory Automation & Robotics: Connect photoelectric sensors, proximity switches and encoders in robotic arms, conveyors and CNC machines, withstanding constant vibration and impact (e.g., KEYENCE’s M12 connector-type photoelectric sensors). Rail Transit: Link speed, temperature and vibration sensors under train carriages and bogies, resisting high-speed vibration, temperature fluctuations and chemical corrosion. Outdoor & Harsh Environments: Used in smart agriculture (soil moisture sensors), heavy-duty vehicles, food & beverage and marine electronics, enduring sunlight, rain, wide temperature changes and salt spray. Selection Guide: Choosing the Right M12 Encapsulated Cable Selection Guide: Choosing the Right M12 Encapsulated Cable Select M12 encapsulated cables based on sensors’ electrical and physical requirements: Selection Dimension Description & Common Options Coding & Pin Count Code A (3/4/5 pins): Universal for sensor/actuator analog/digital signals; Codes B/D/X for bus/Ethernet. Protection Rating IP67 (dust-proof, temporarily submersible); some models offer IP65/IP69K. Cable Characteristics PUR sheath (oil/wear/tear-resistant); operating temperature ≥ -15°C to +80°C (or wider). Electrical Parameters Match sensor power (e.g., 24V DC, 2A/4A); shielded models resist EMI for clean signals. Installation Type Straight or 90° right-angle; right-angle saves space for cabinet/compact wiring. Industry Standards & Quality Assurance Reliable M12 connectors comply with IEC standards for interoperability. For high-safety fields (automotive/rail), choose IATF 16949-certified products for consistent quality. Summary M12 encapsulated cables are foundational for robust sensor networks. Their integrated design enhances M12’s strengths with moisture/shock resistance, ensuring unobstructed signal transmission and supporting critical systems like smart manufacturing. Guangdong Corecon Precision Industry Co., Ltd.  specializes in various industrial connector, push-pull self-locking connectors, new energy connectors, M series connectors , waterproof connectors, electric bicycle signal and power connector, and all kinds of wire harnesses. If you have any questions related to the connector industry, please contact us and we will provide you with free, one-stop professional solutions within 24 hours.

Jingcheng’s R&D team leverages digital modeling, virtual simulation and rapid prototyping technologies to shorten new product development cycles by 25% and improve development success rates. Through a digital demand docking platform, we accurately capture customers’ customization requirements and provide one-stop digital customization services from design and simulation to sample production. Whether for new energy high-voltage pins, automotive-grade connectors, or medical/military-specific Pogo Pins, we respond quickly and implement efficiently, helping customers seize market opportunities

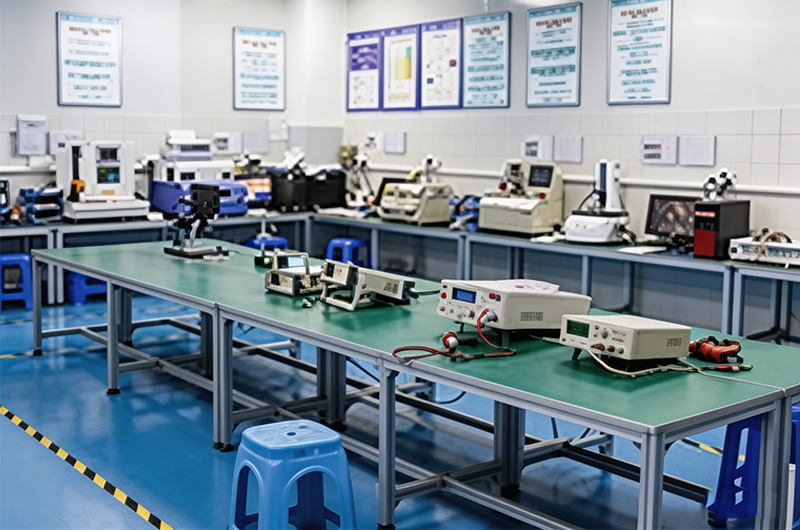

Quality is the lifeline of high-end connectors. Dongguan Jingcheng Industrial integrates CCD optical inspection, Coordinate Measuring Machines (CMM) and digital analysis to achieve real-time data collection and automatic analysis of product precision, appearance and performance. 100% full inspection is implemented for key products to ensure zero-defect delivery. Meanwhile, we have established a full product lifecycle traceability system: through digital coding, the production batch, processing parameters and inspection results of each product can be quickly queried, meeting compliance requirements of high-end industries such as automotive and medical, giving customers peace of mind and hassle-free traceabilit

Founded in 2004, Dongguan Jingcheng Industrial specializes in the R&D and production of high-precision connector hardware, pins & sockets, and Pogo Pins. With nearly 20 years of experience, we have built a full-range capability from CNC precision machining to customized connectors. The company is certified to ISO 9001 and IATF 16949, with a full-process quality control system. Embracing the wave of intelligent manufacturing, Dongguan Jingcheng Industrial has transformed through four systems: digital production, intelligent inspection, digital R&D, and collaborative operations. We have achieved a 30%+ increase in production efficiency, a 25% reduction in R&D cycle, 100% full inspection of key products, and full lifecycle traceability. We provide stable and reliable connection solutions for medical, automotive, new energy, military and other industries, becoming a trusted partner for global high-end manufacturing.

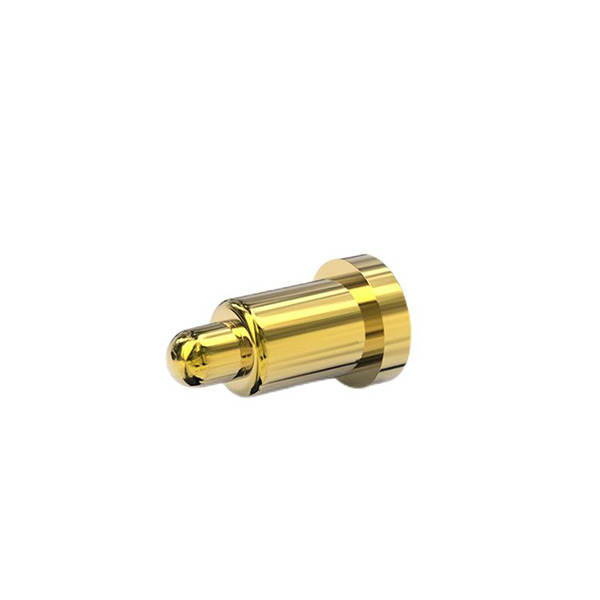

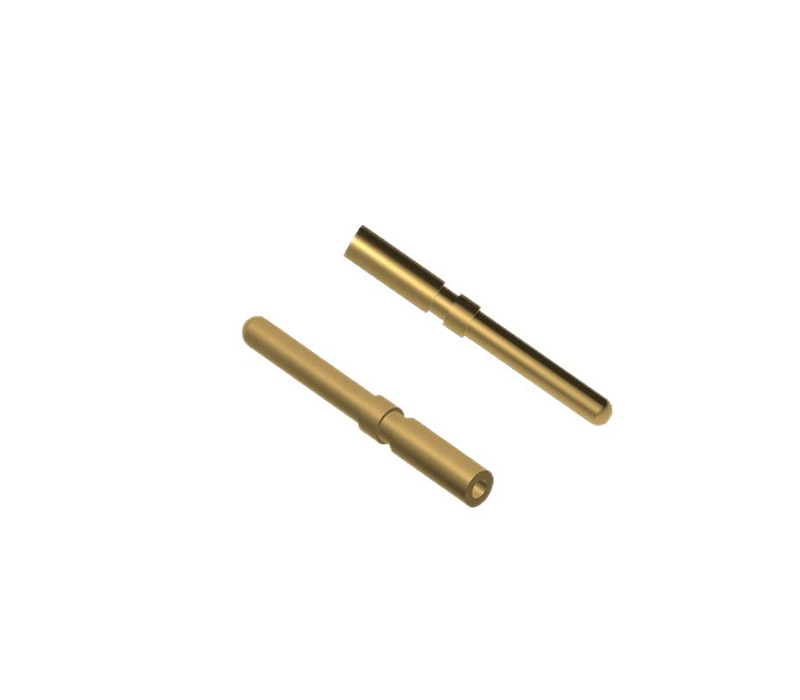

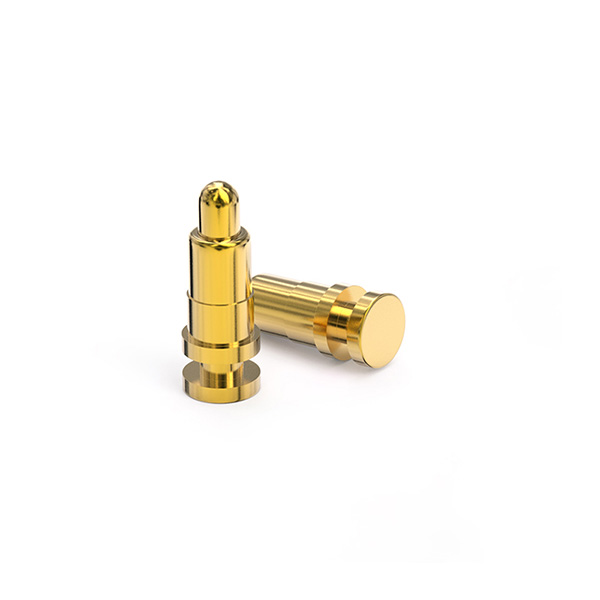

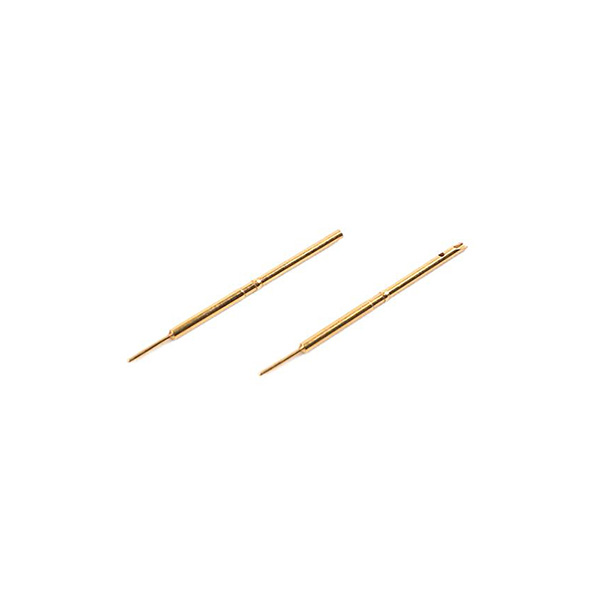

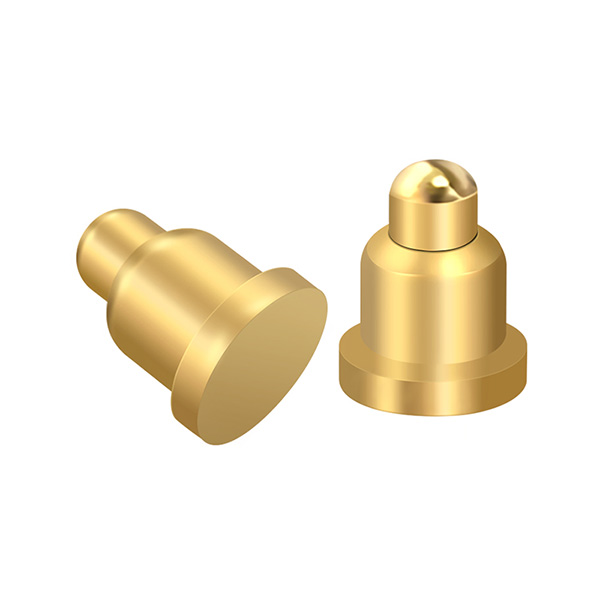

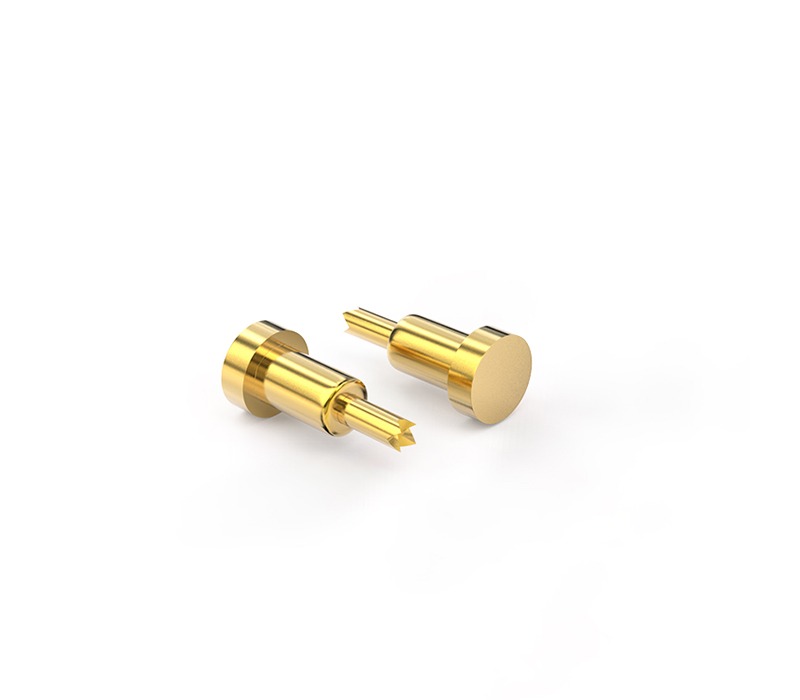

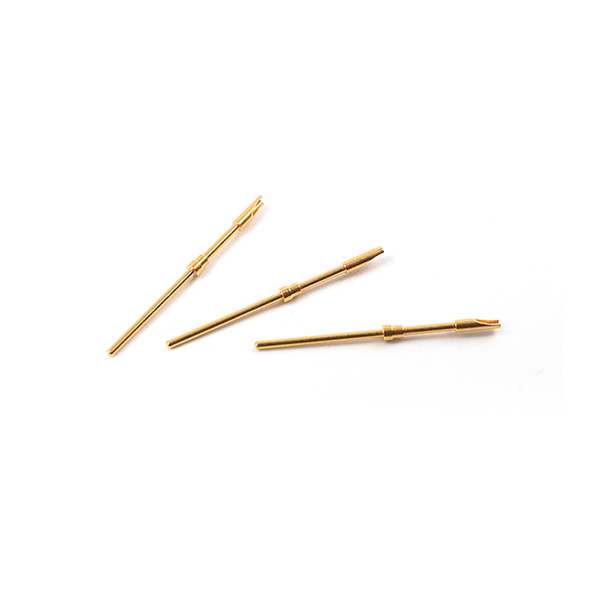

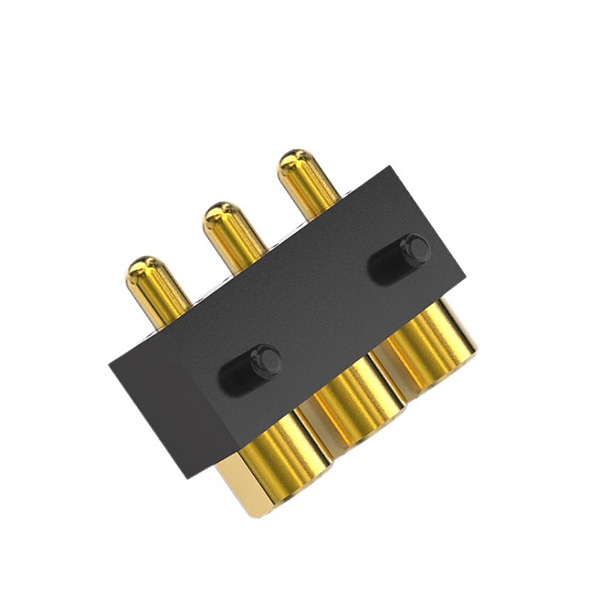

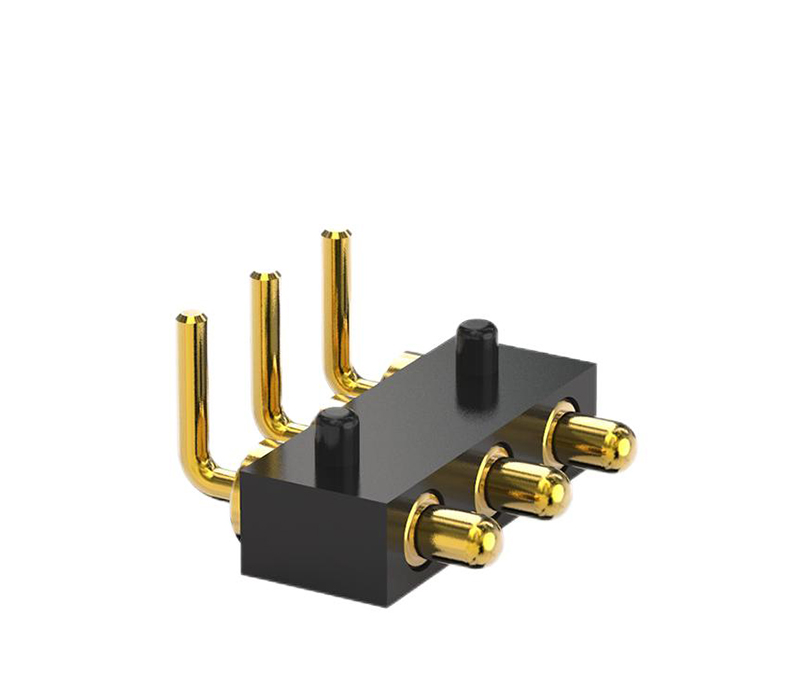

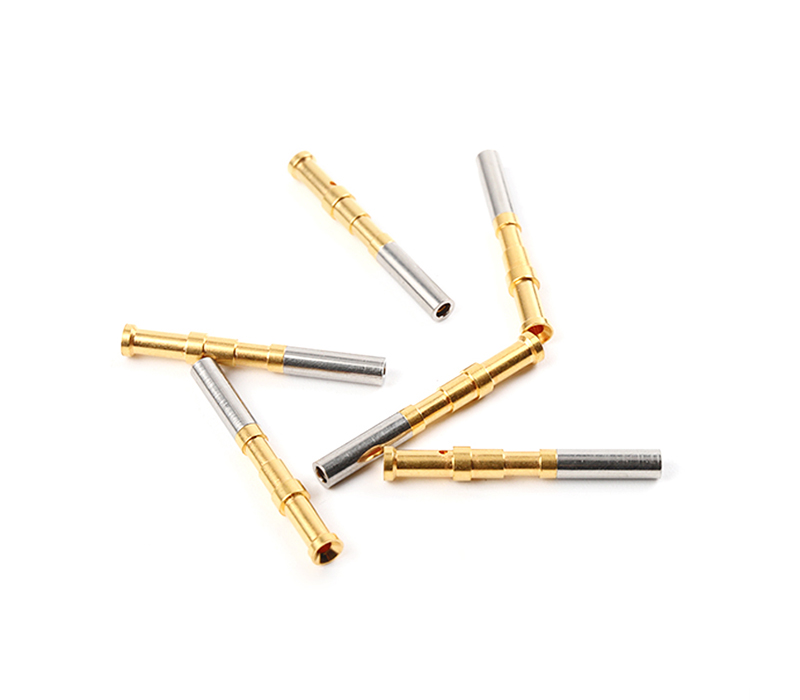

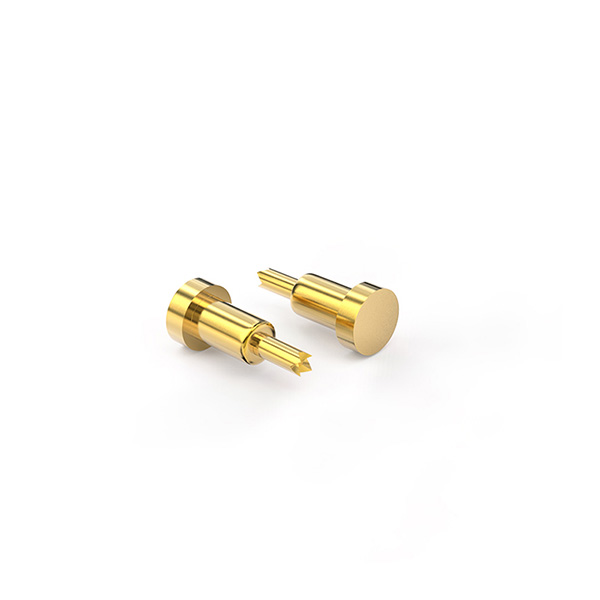

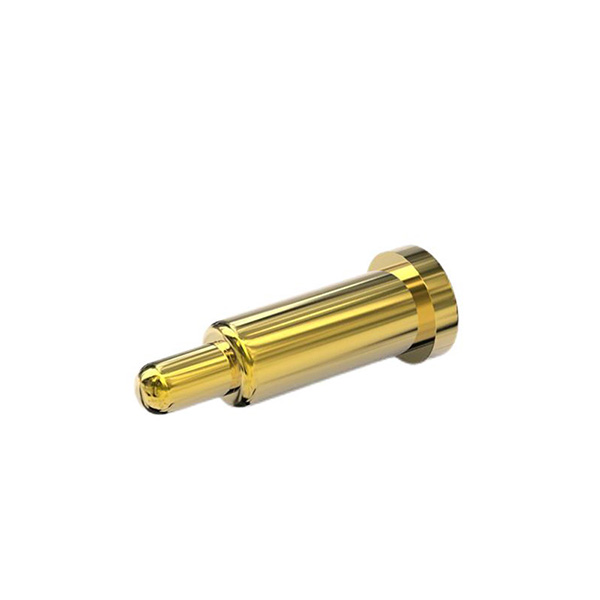

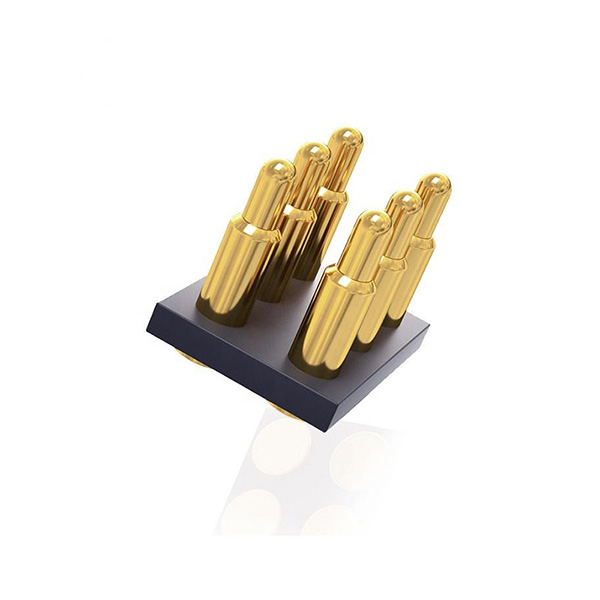

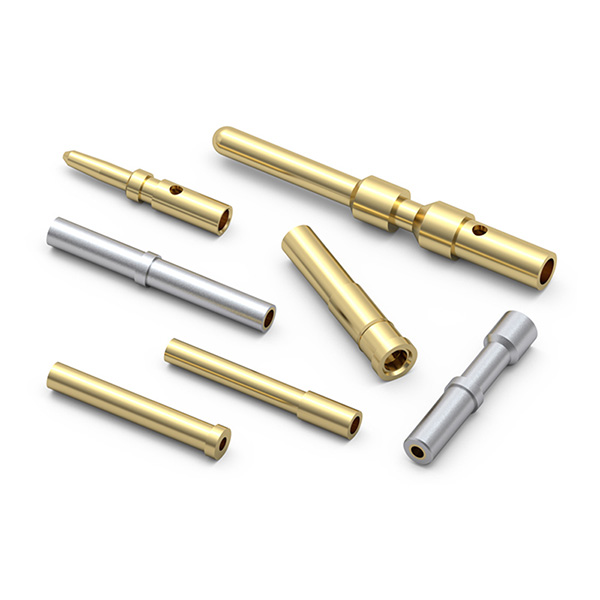

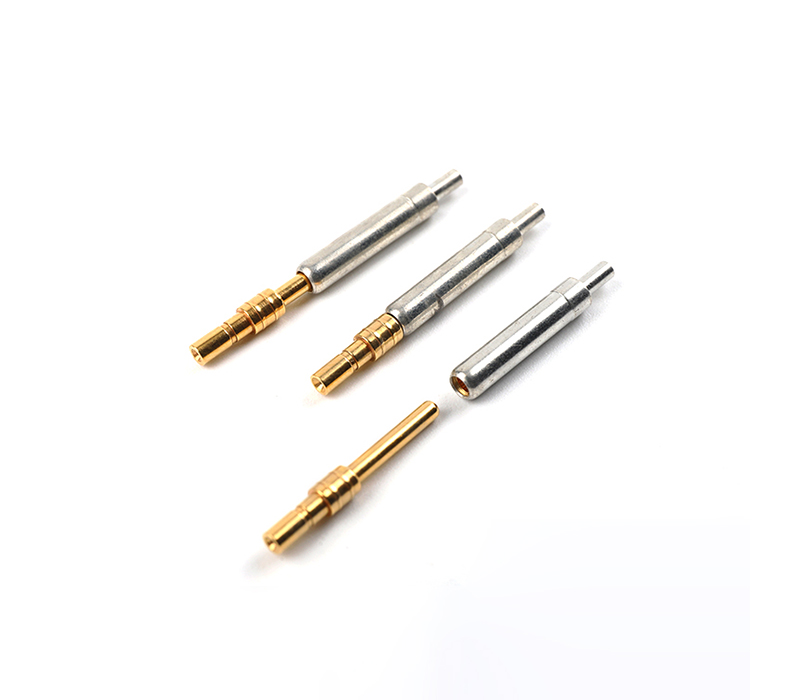

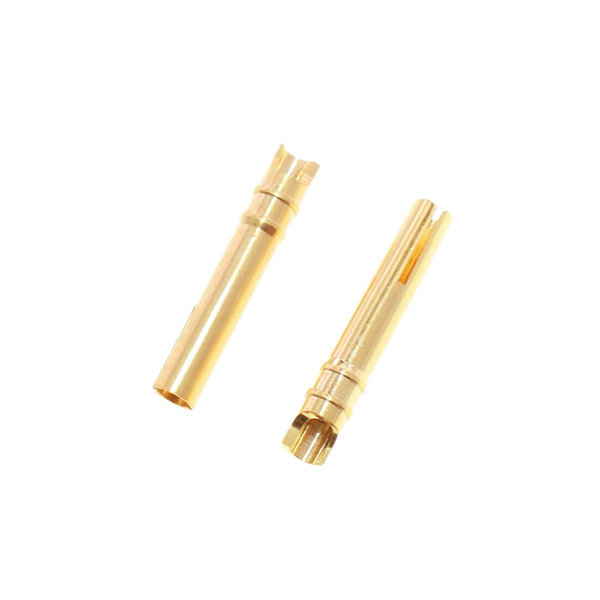

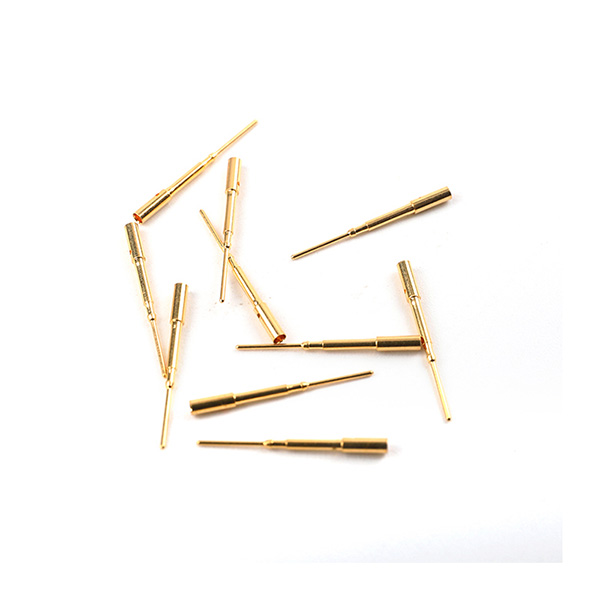

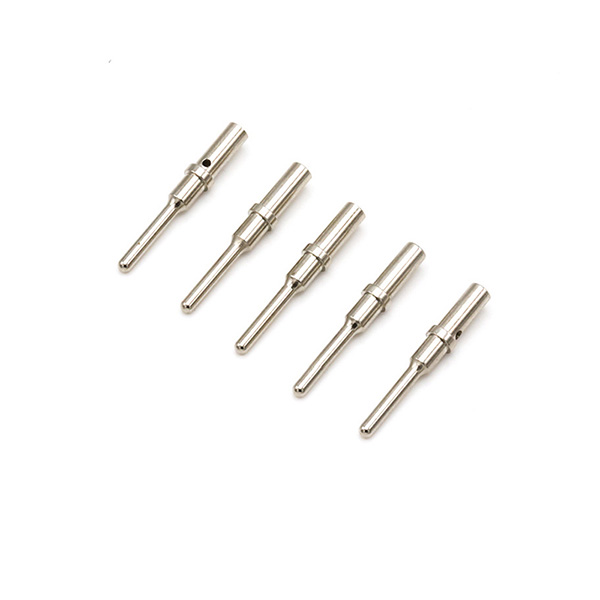

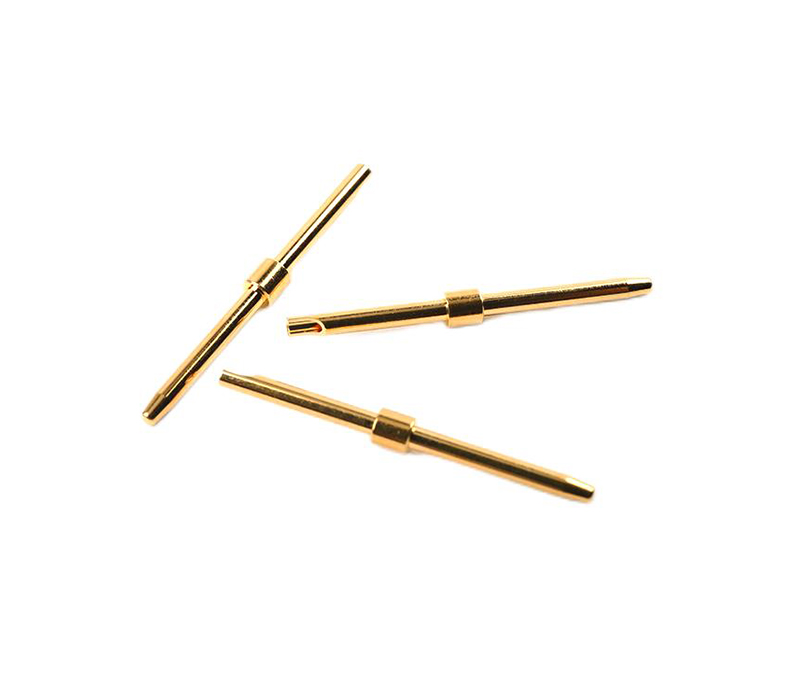

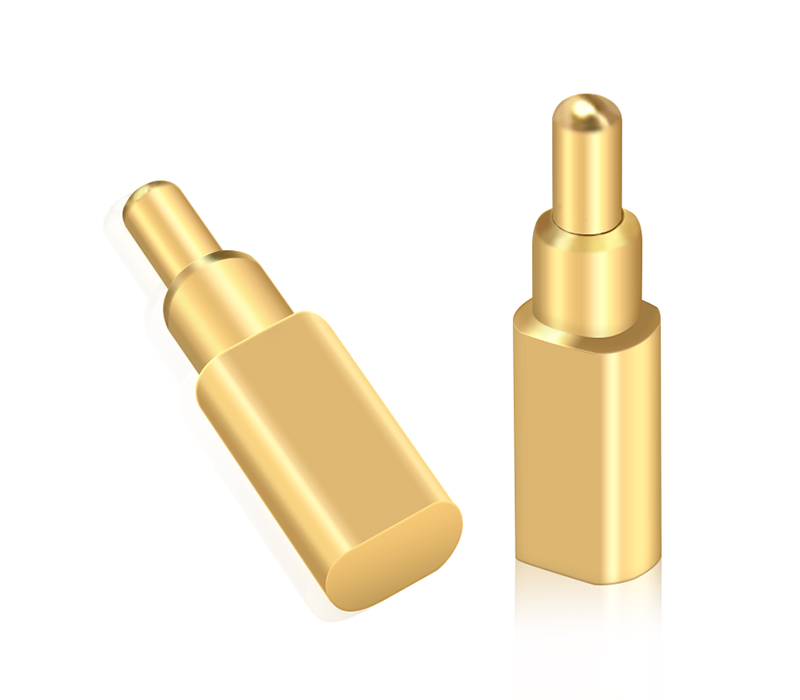

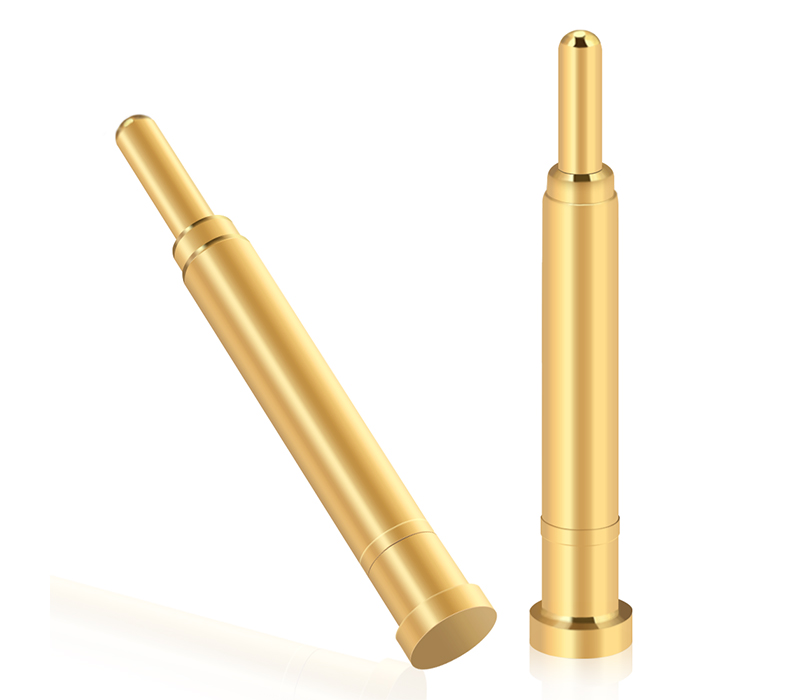

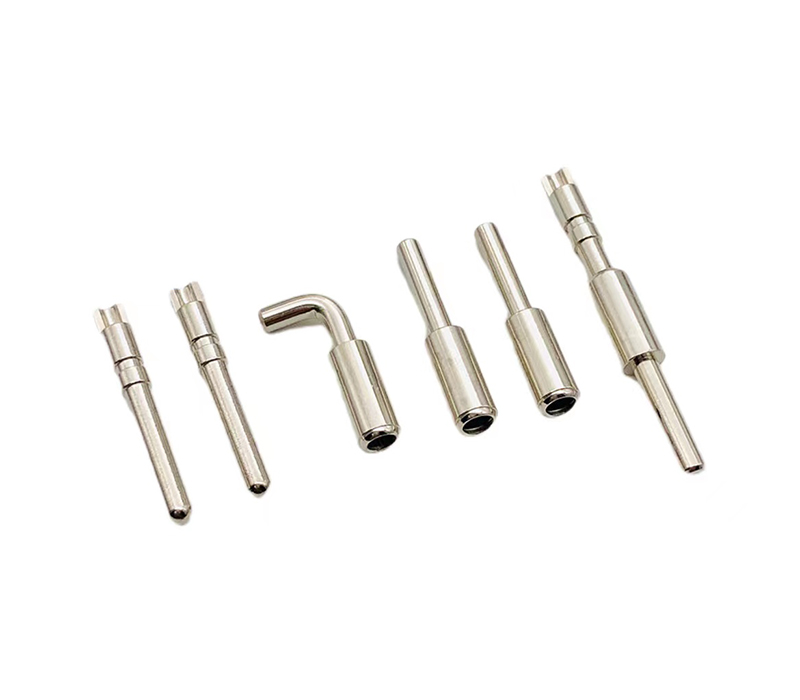

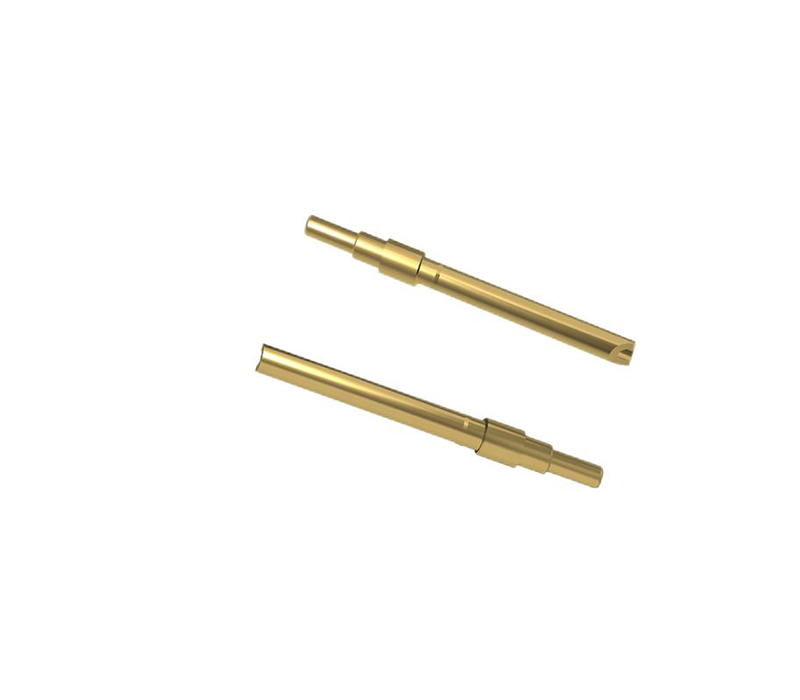

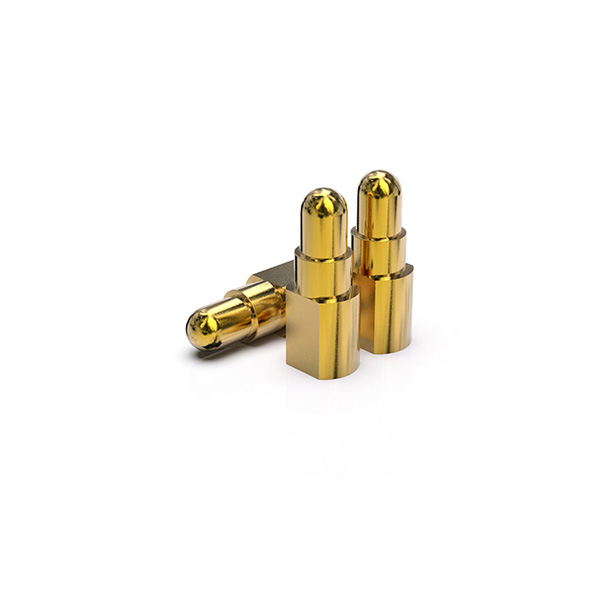

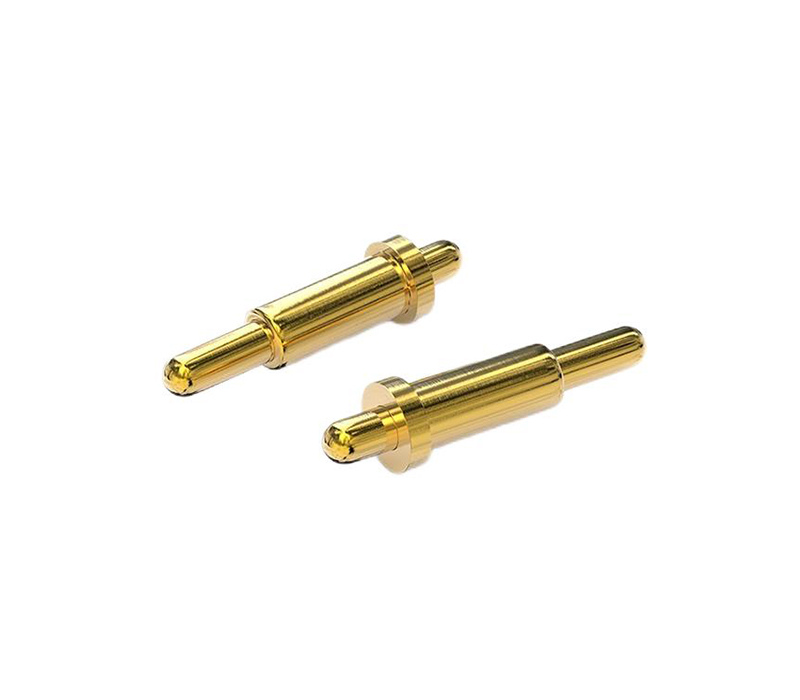

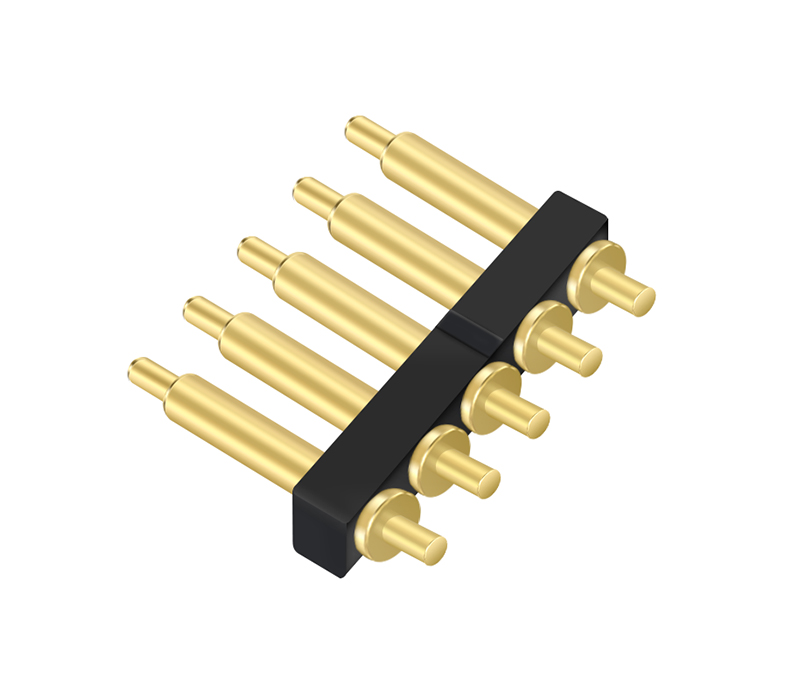

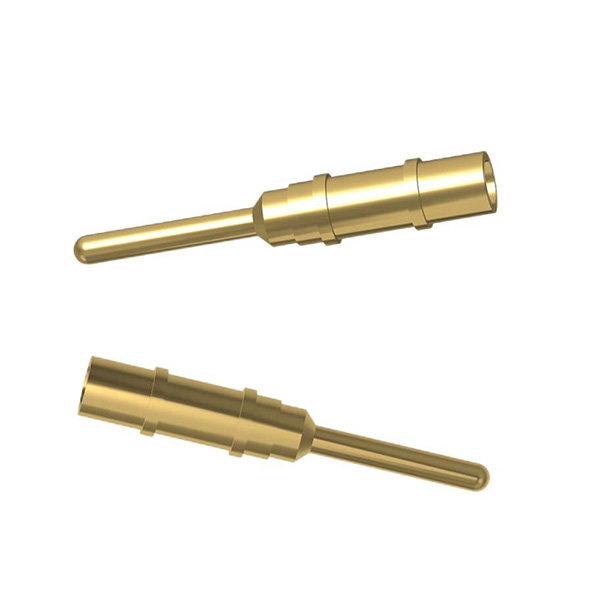

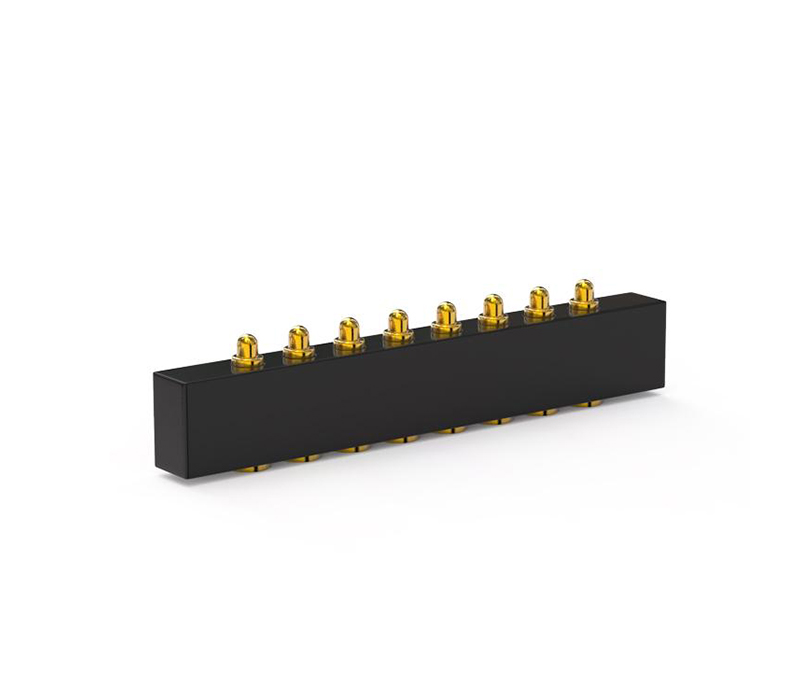

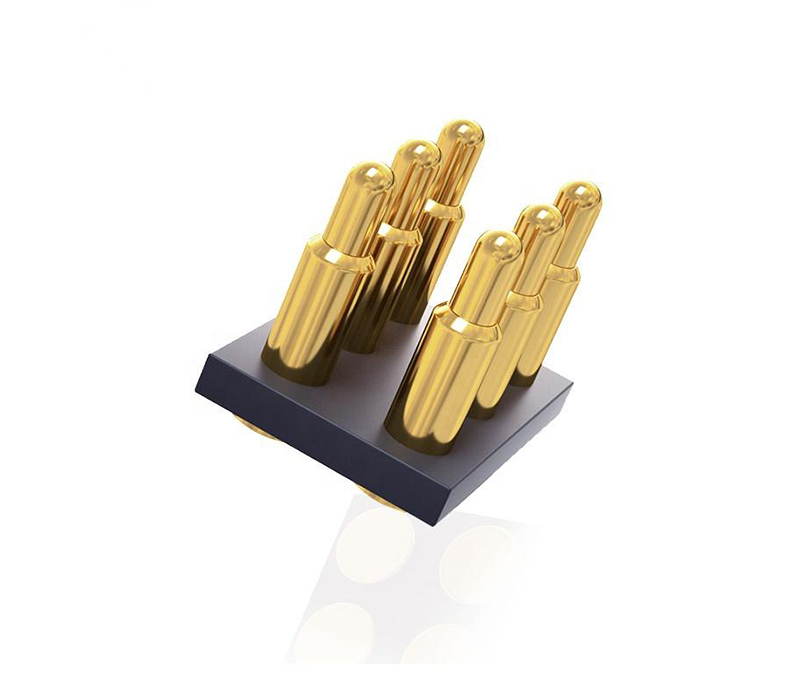

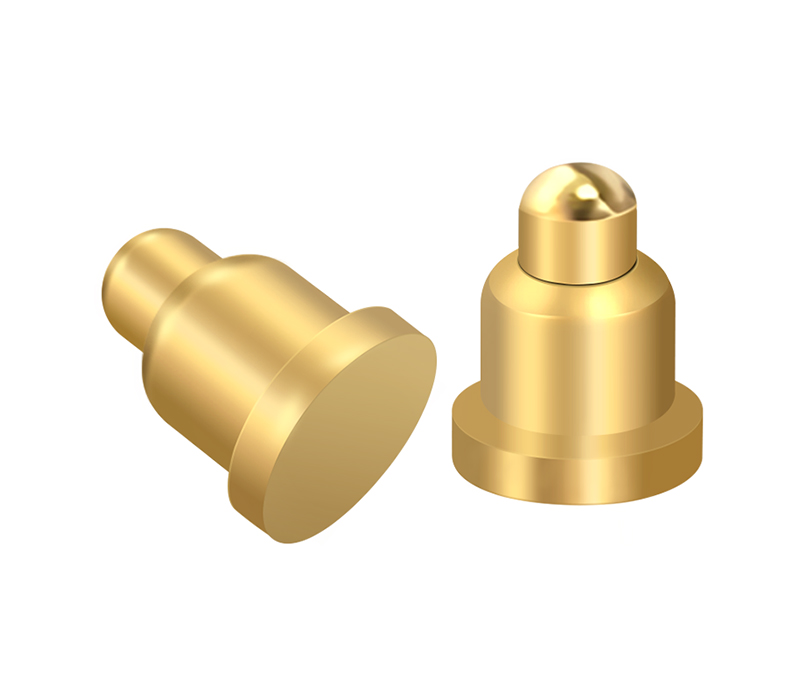

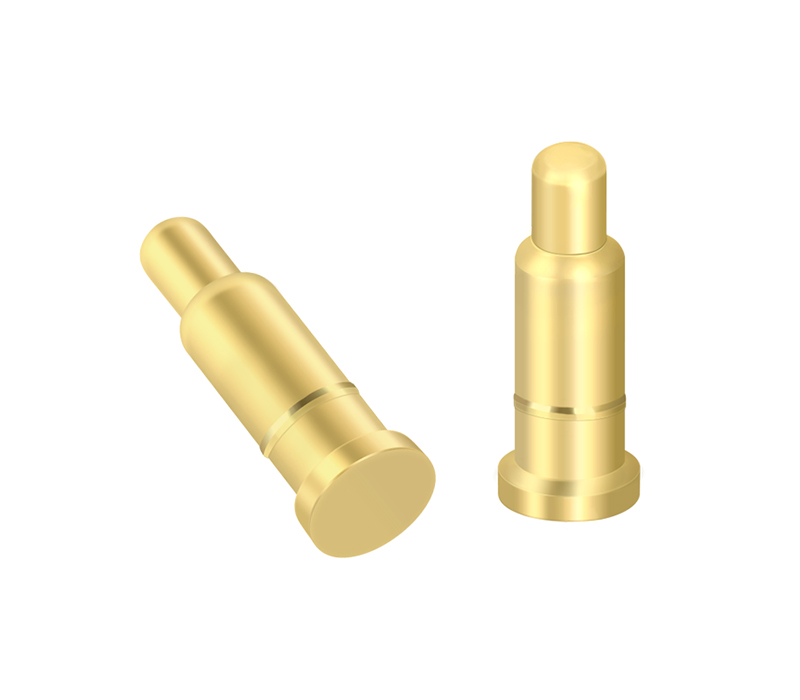

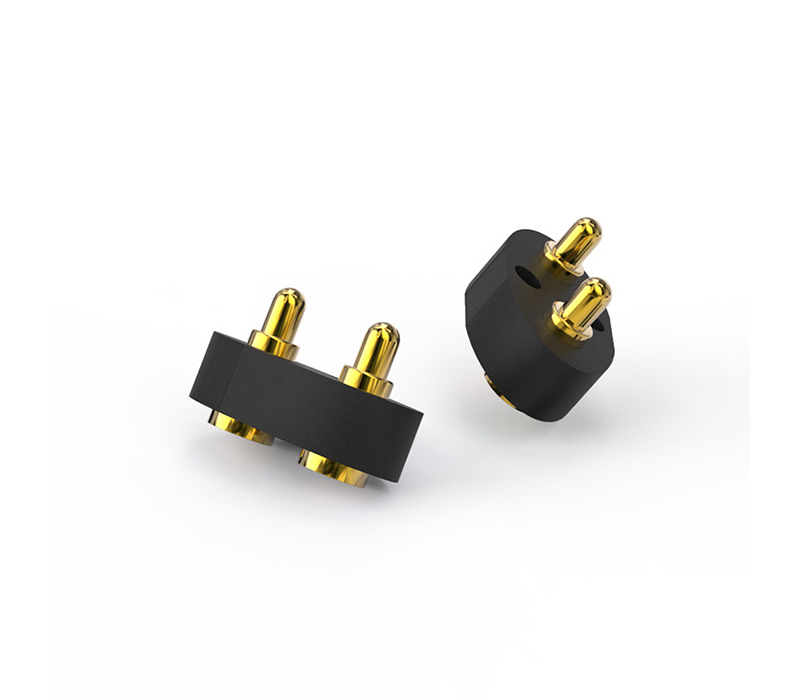

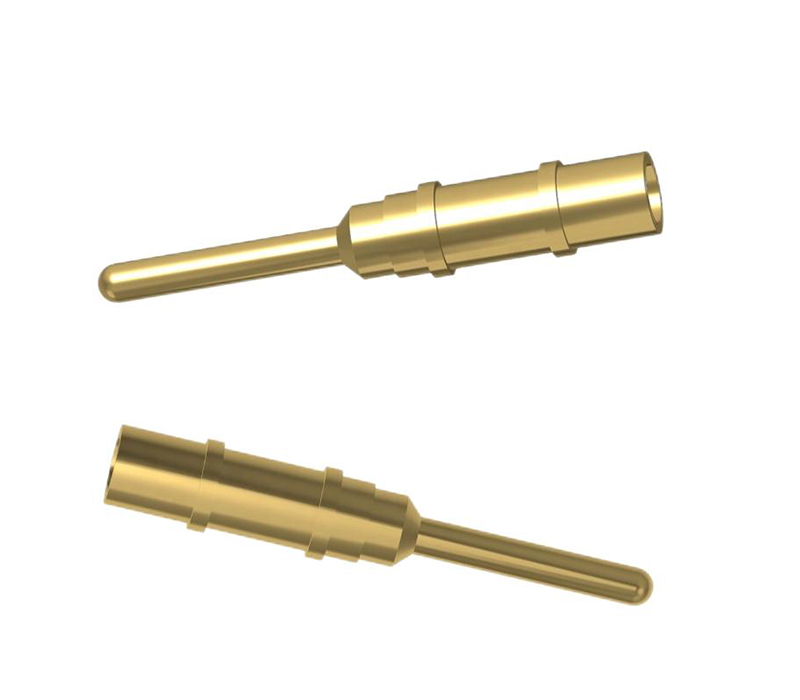

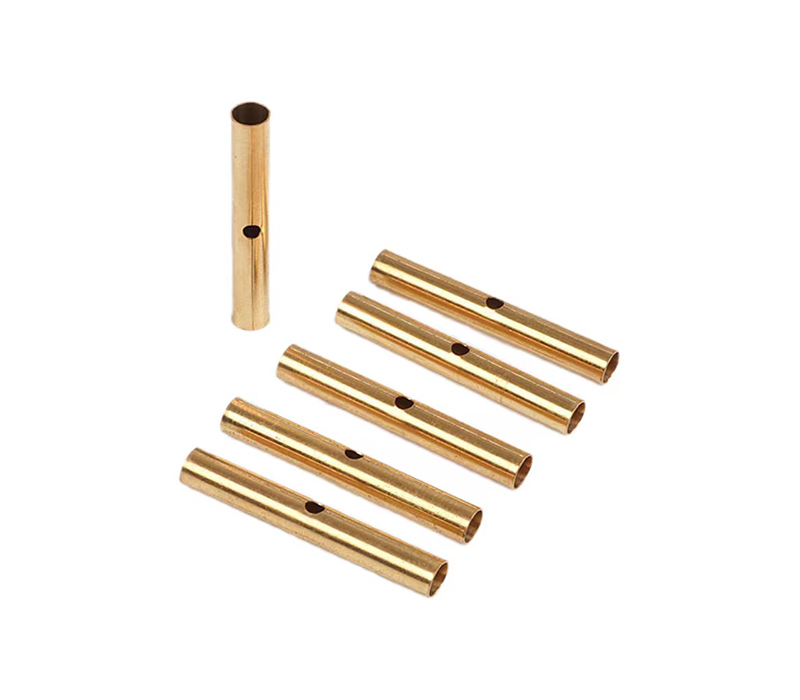

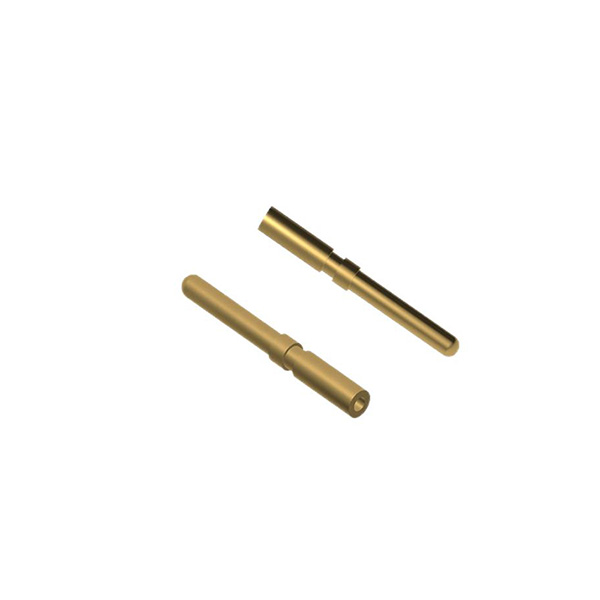

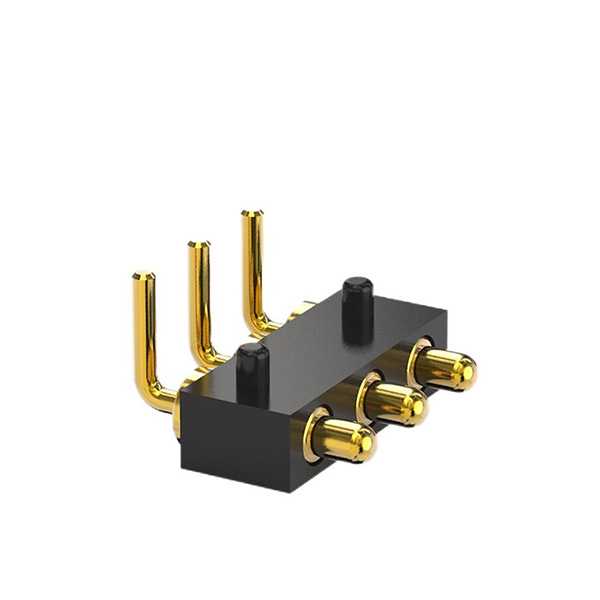

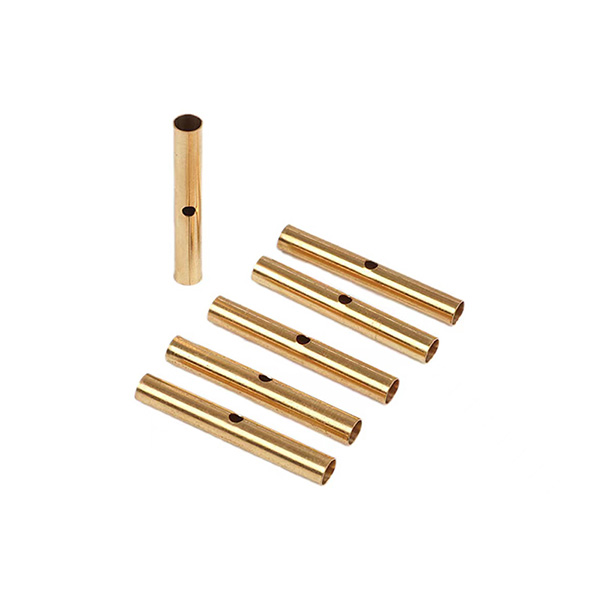

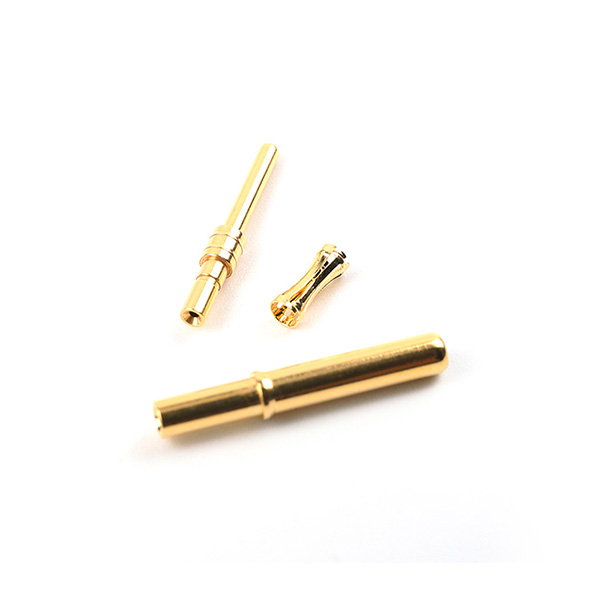

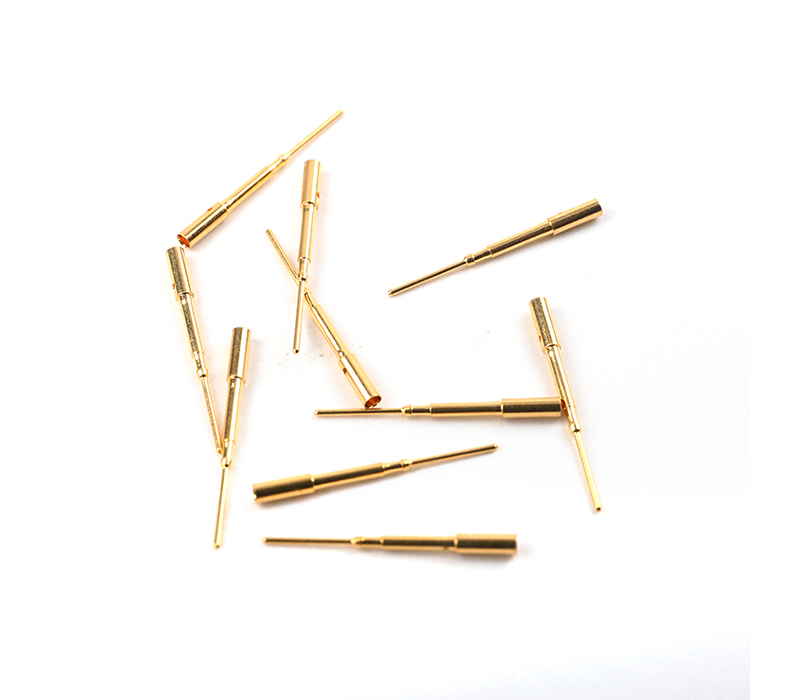

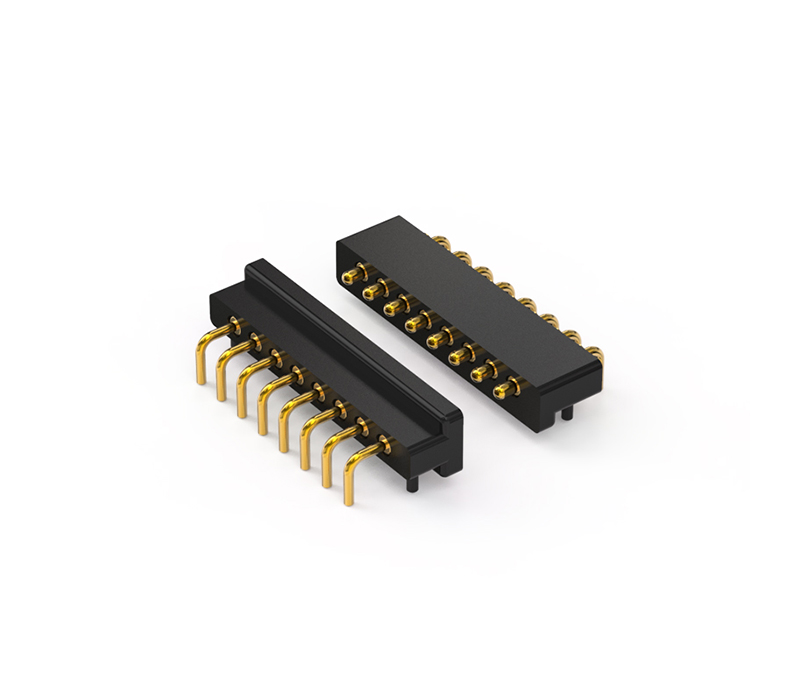

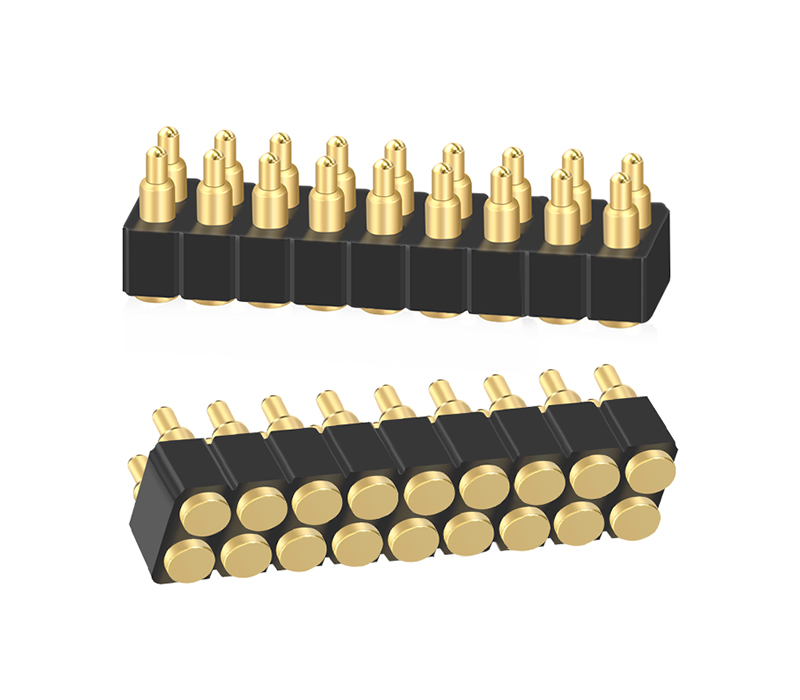

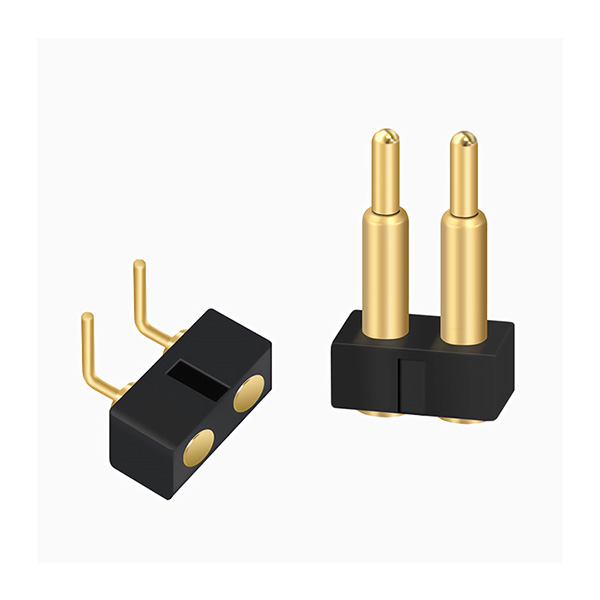

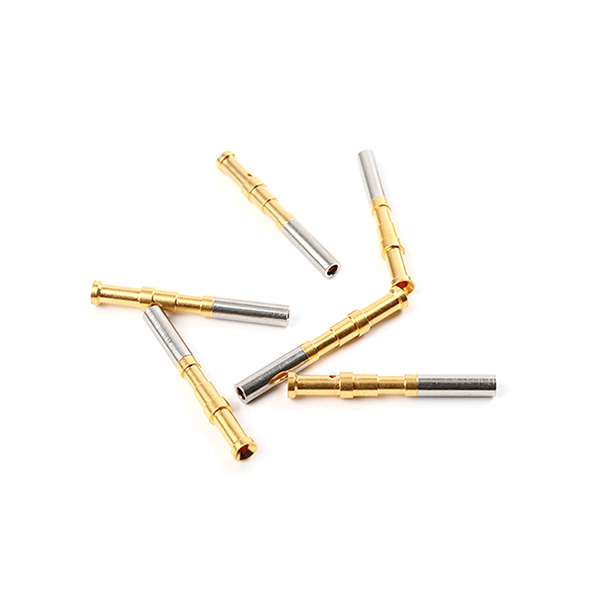

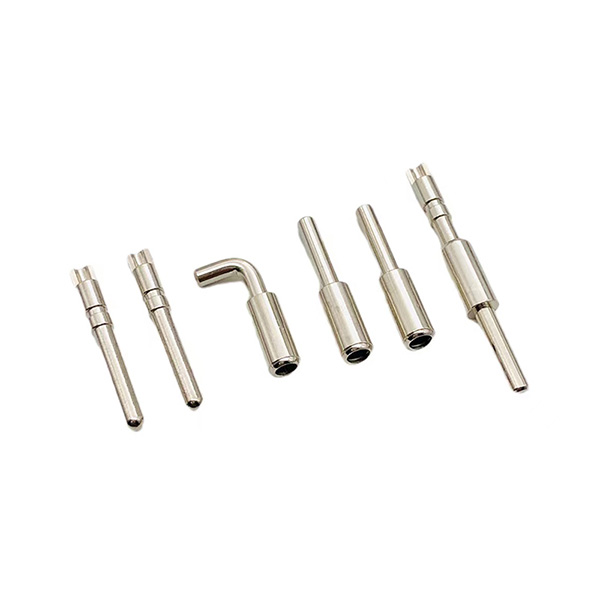

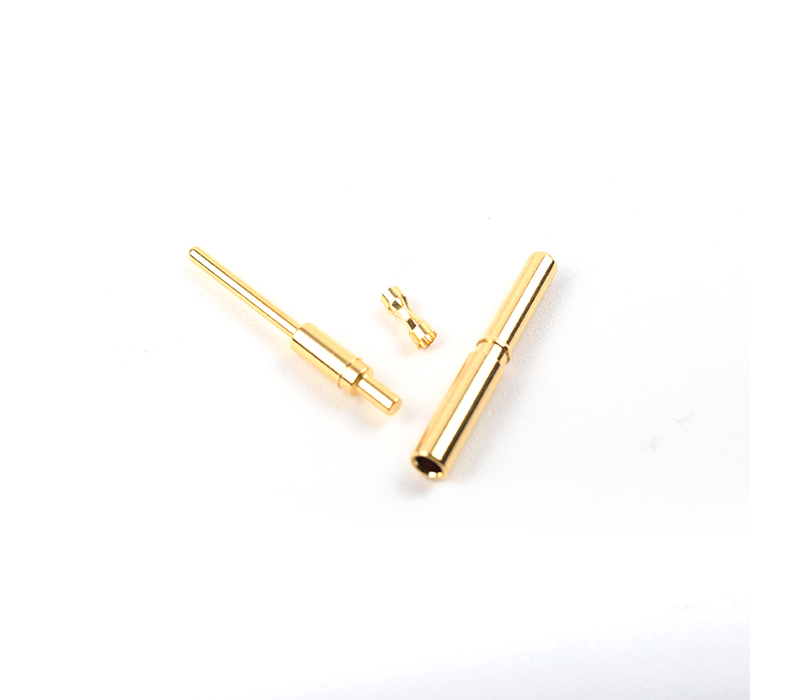

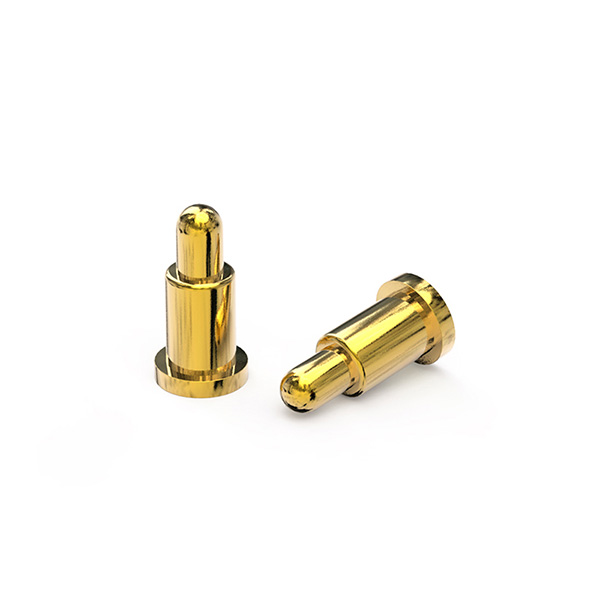

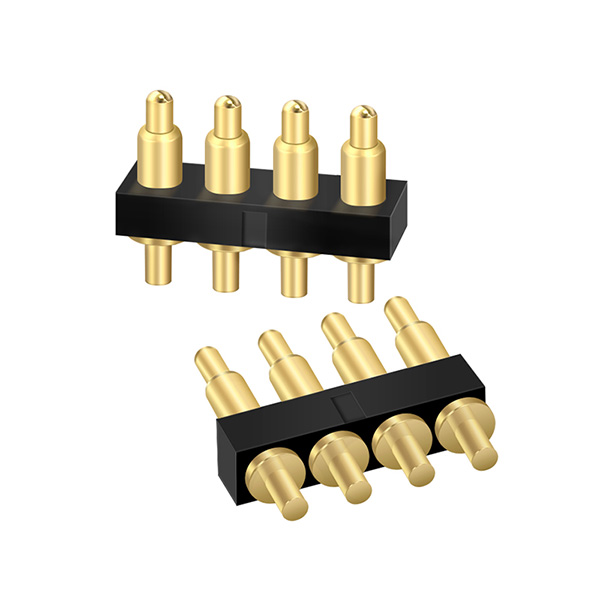

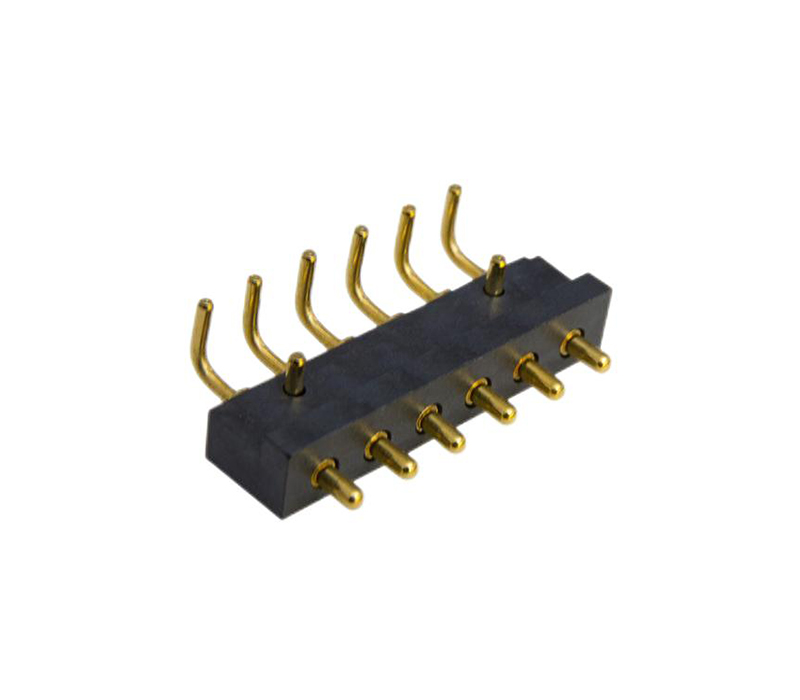

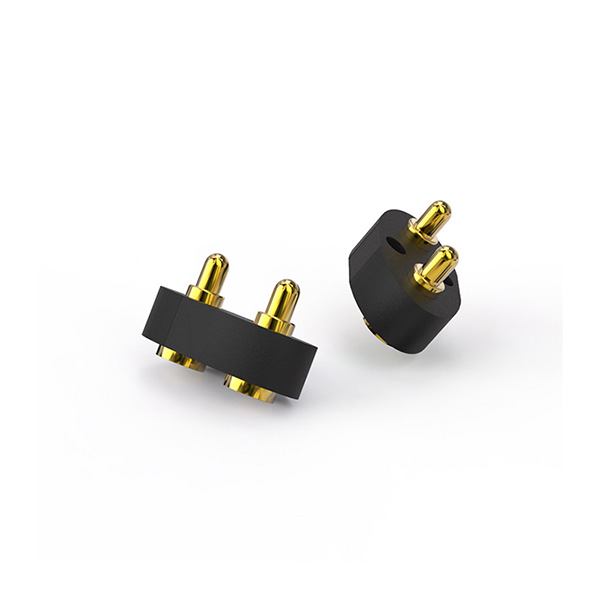

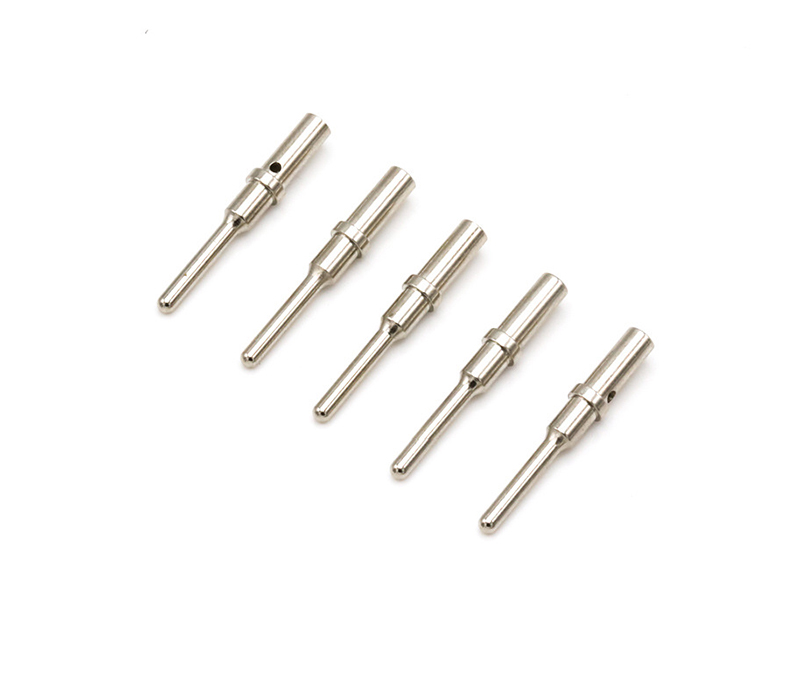

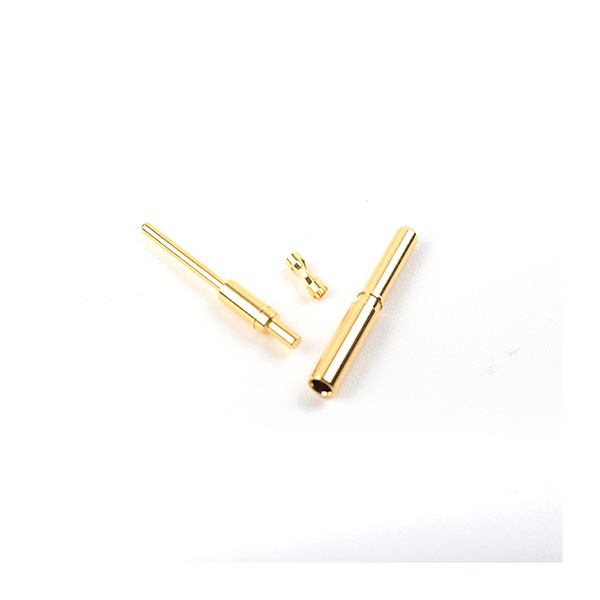

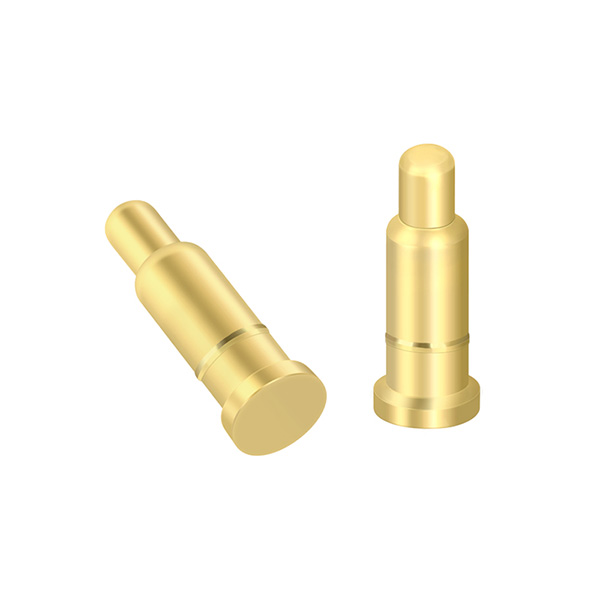

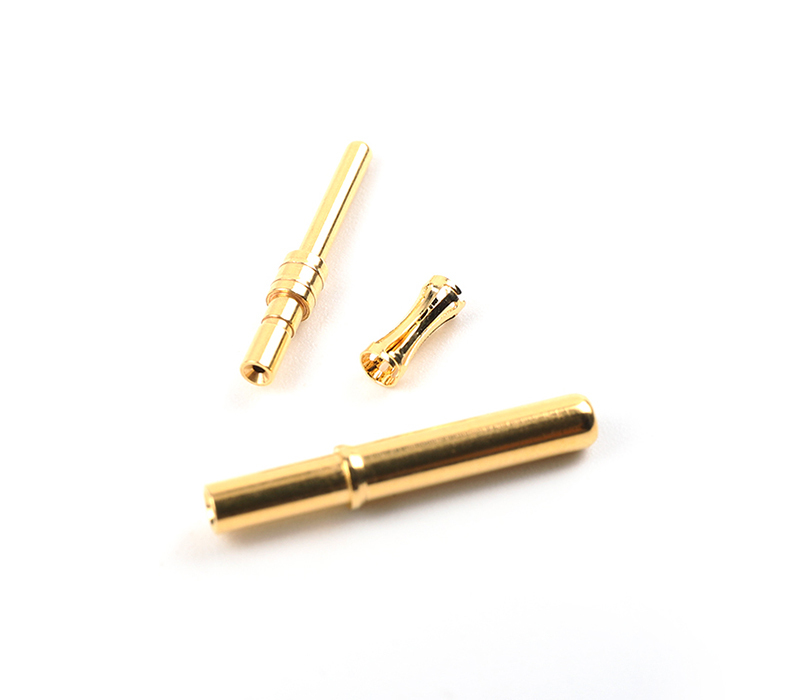

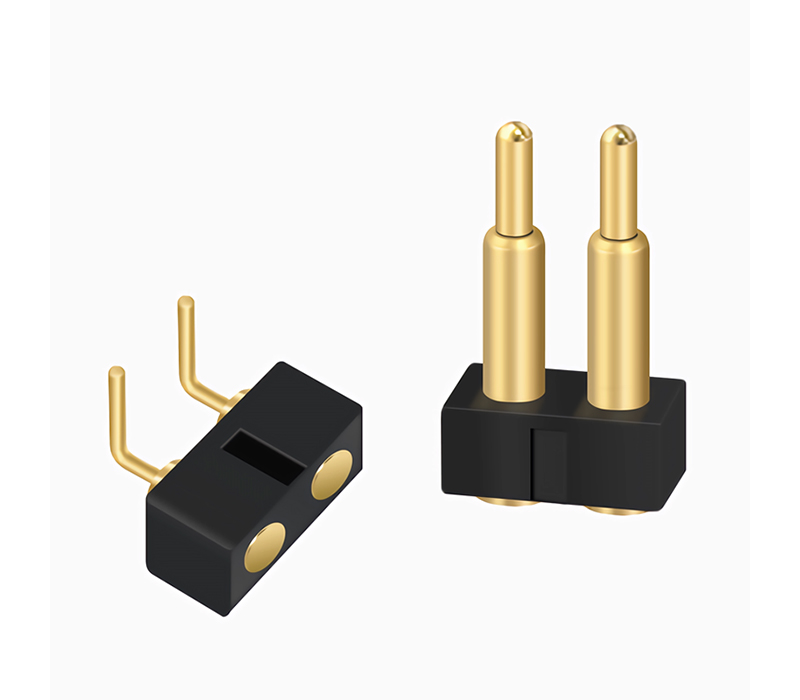

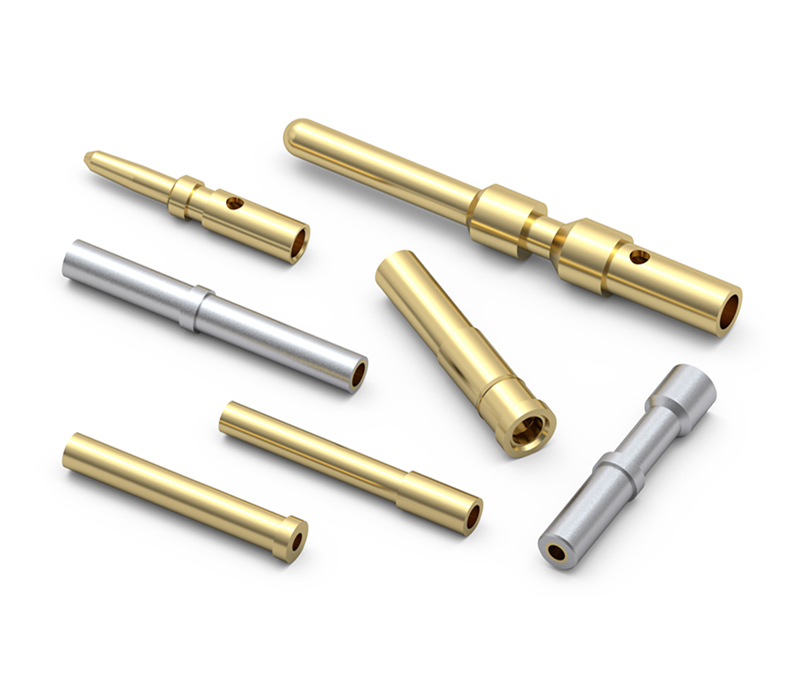

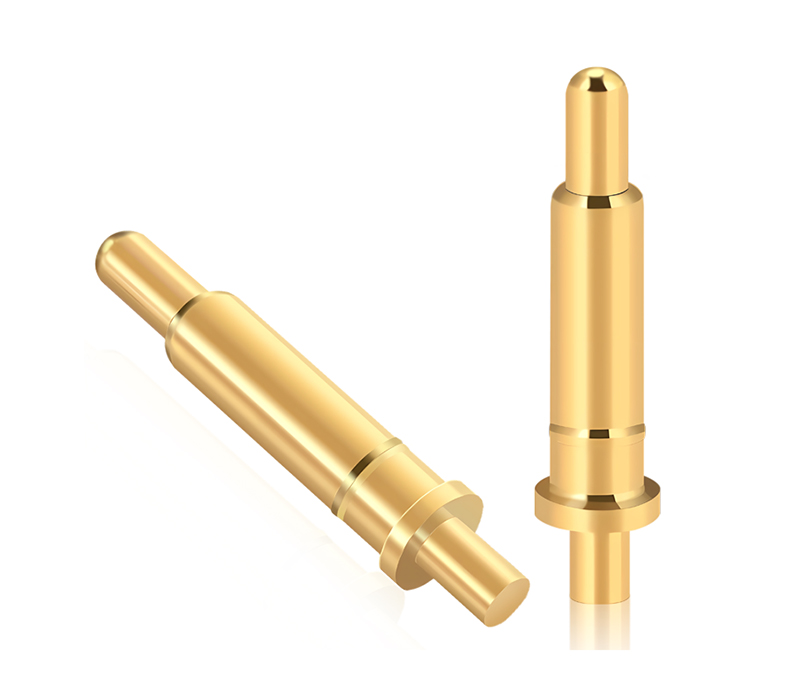

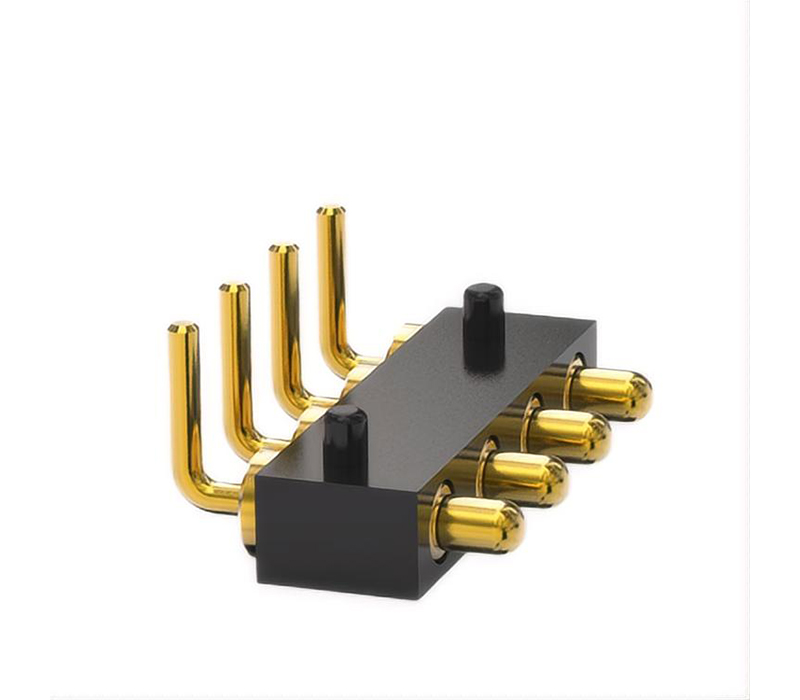

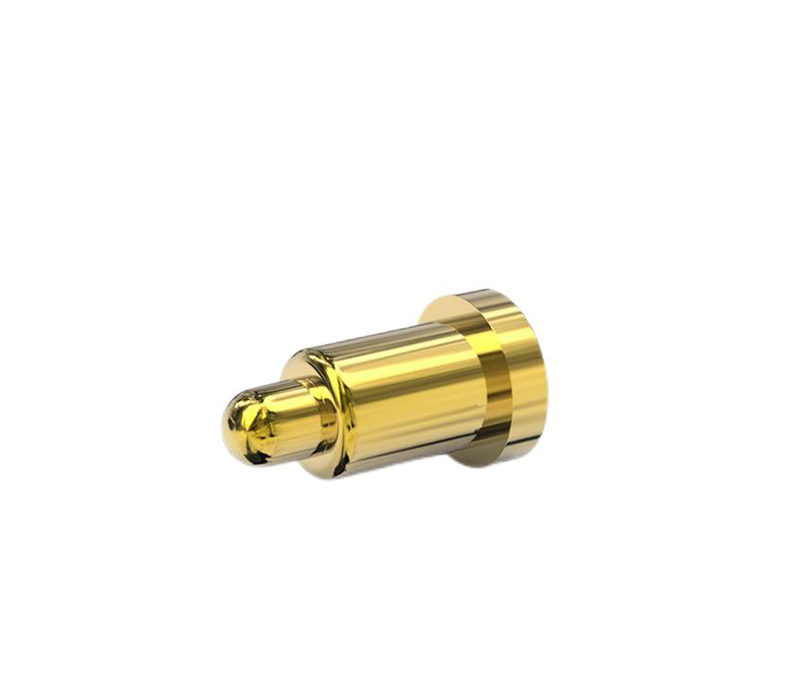

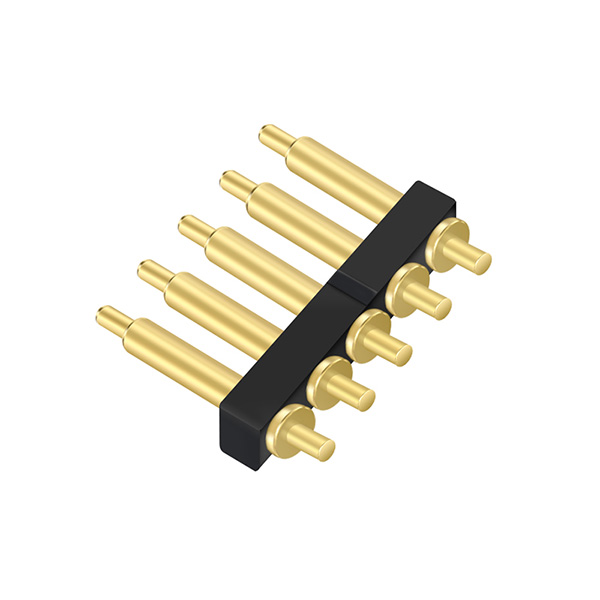

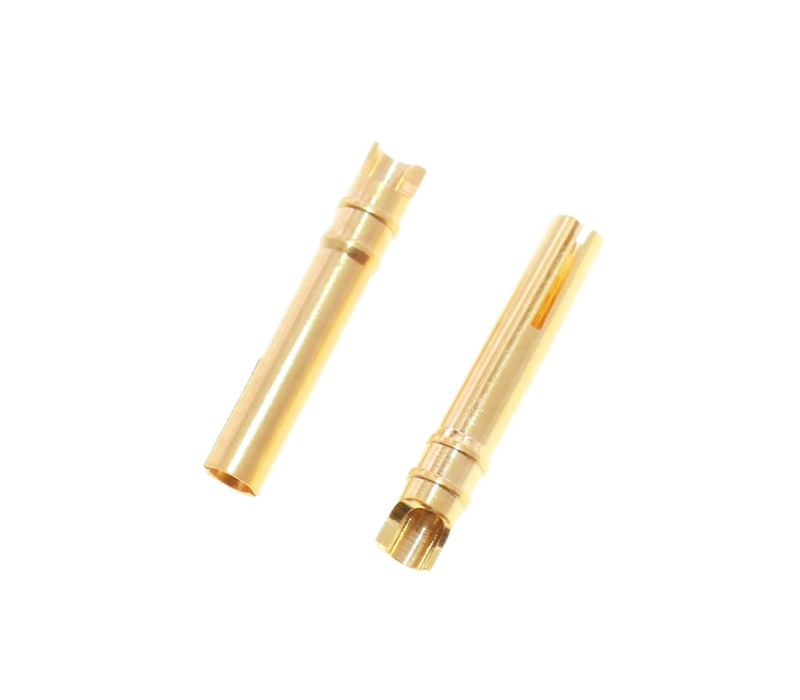

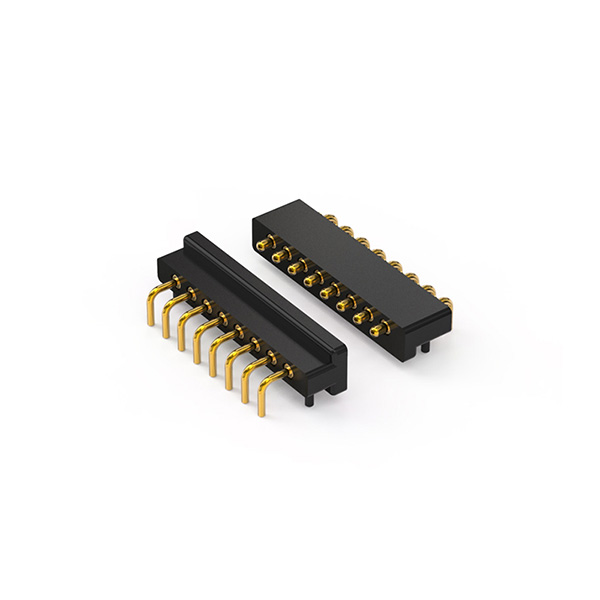

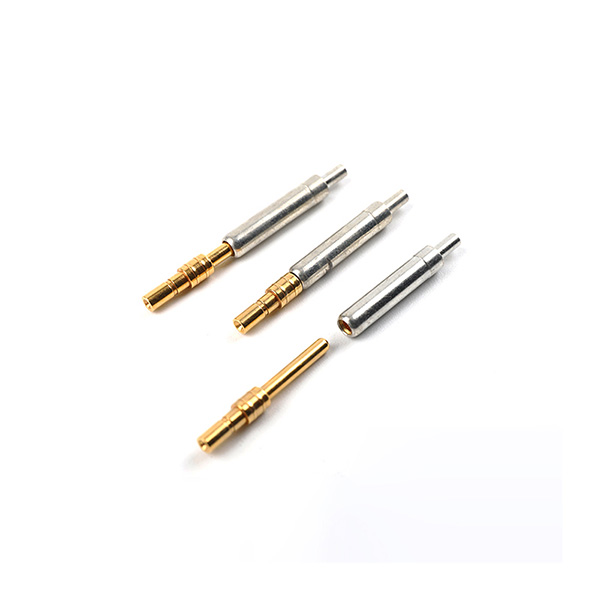

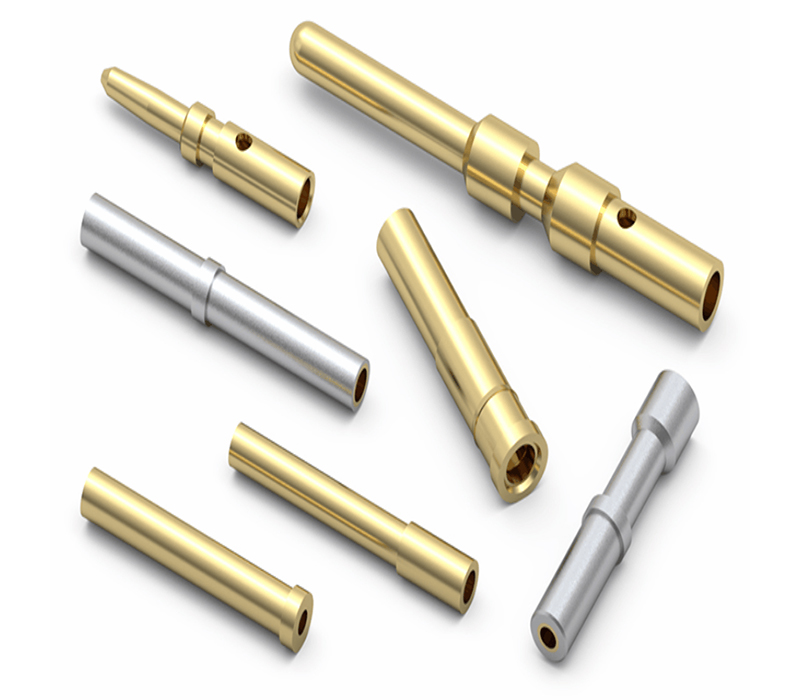

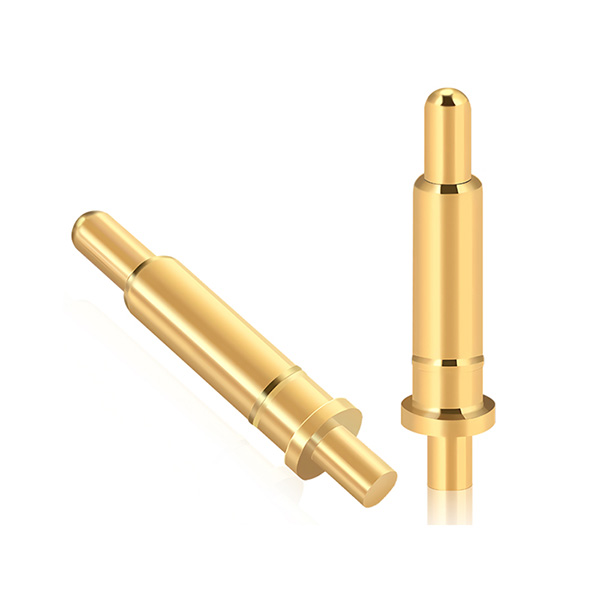

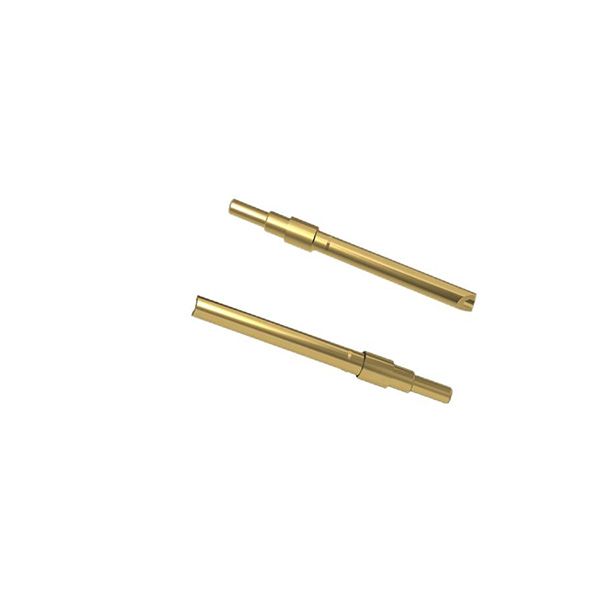

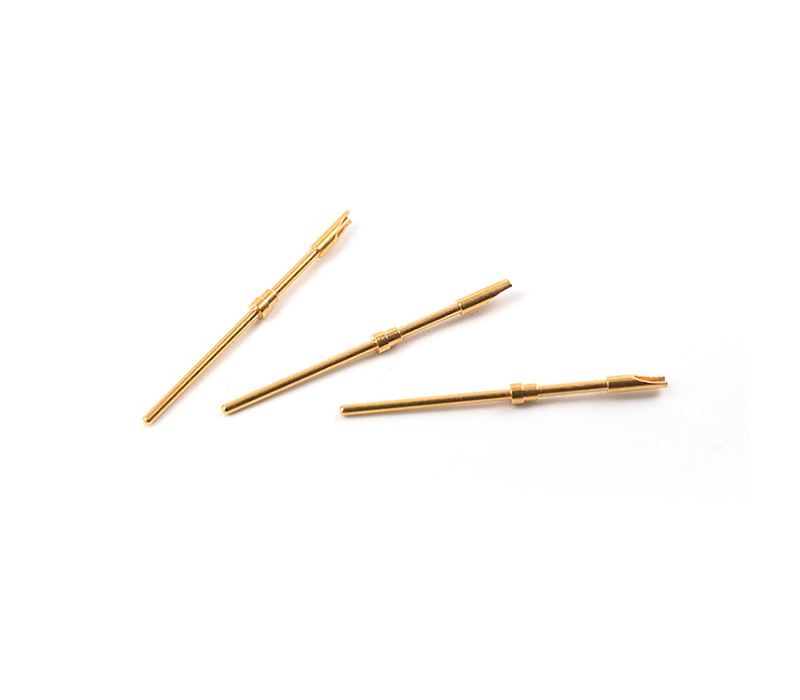

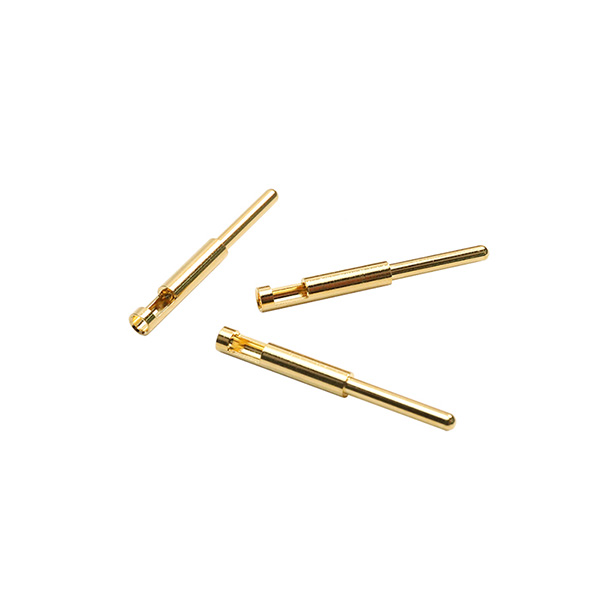

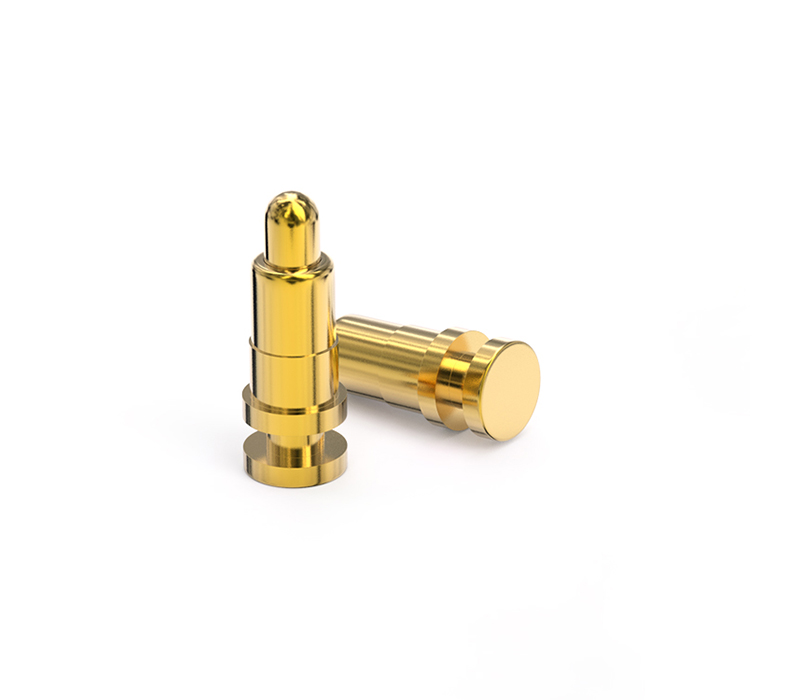

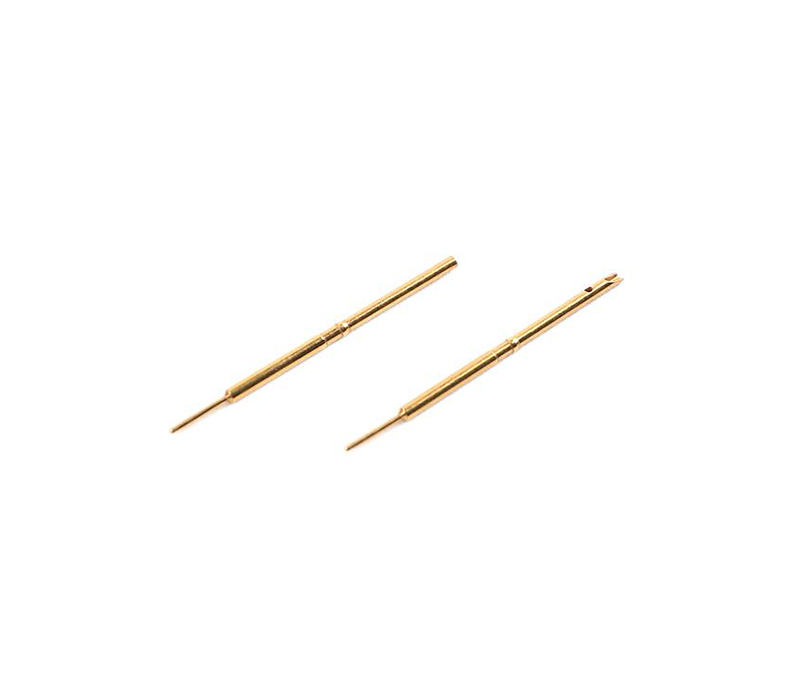

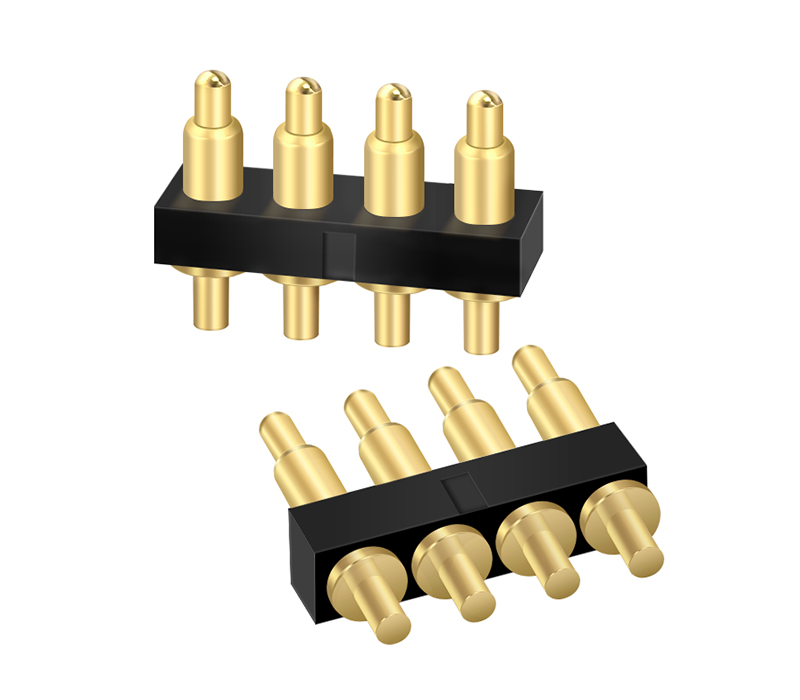

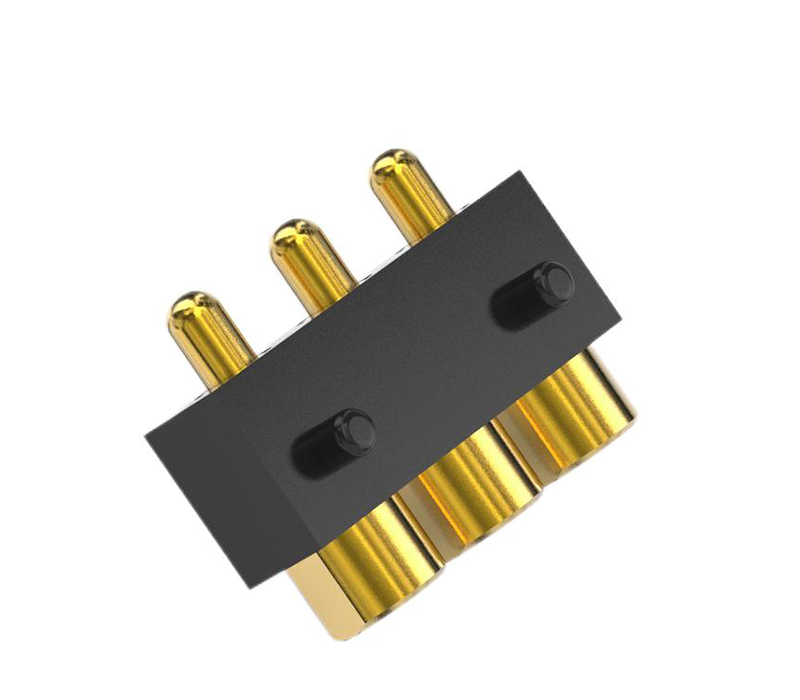

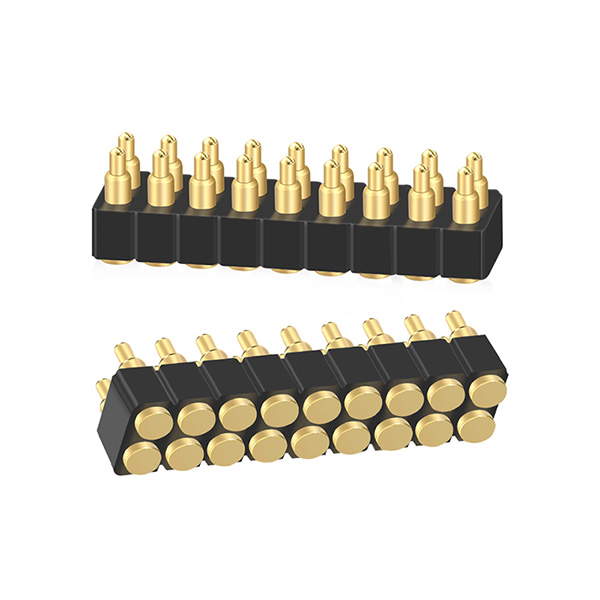

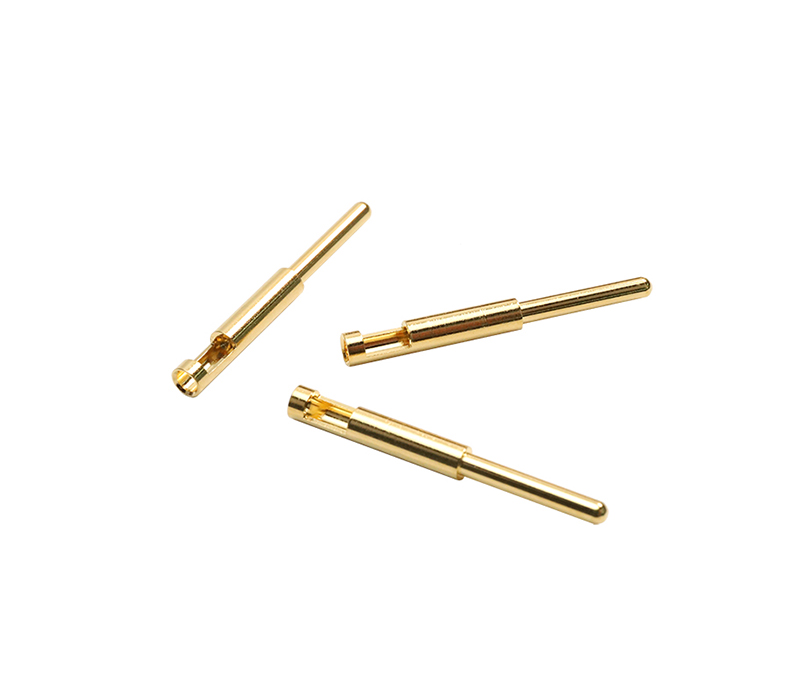

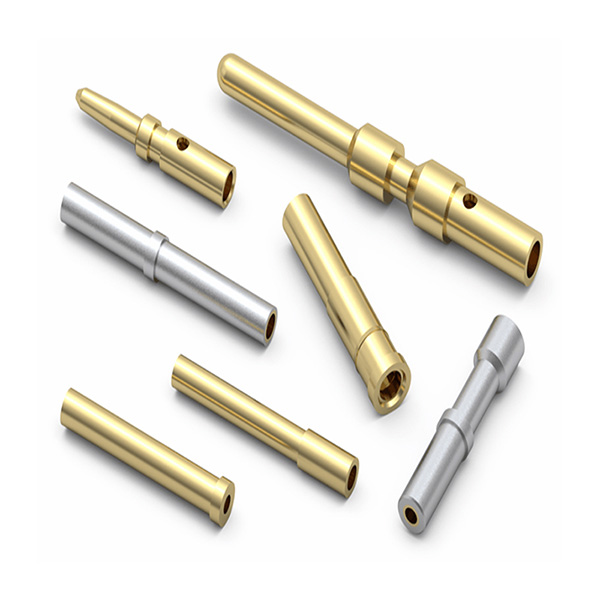

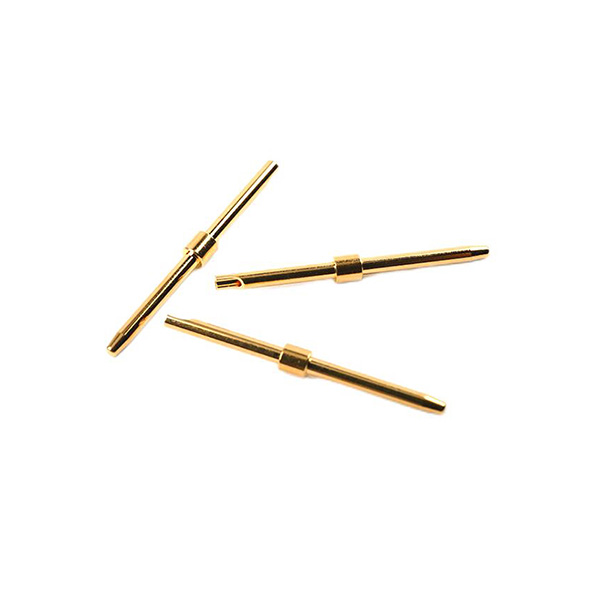

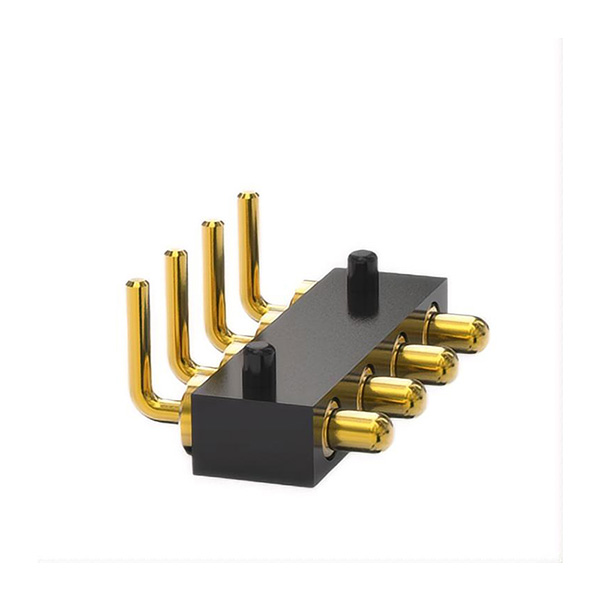

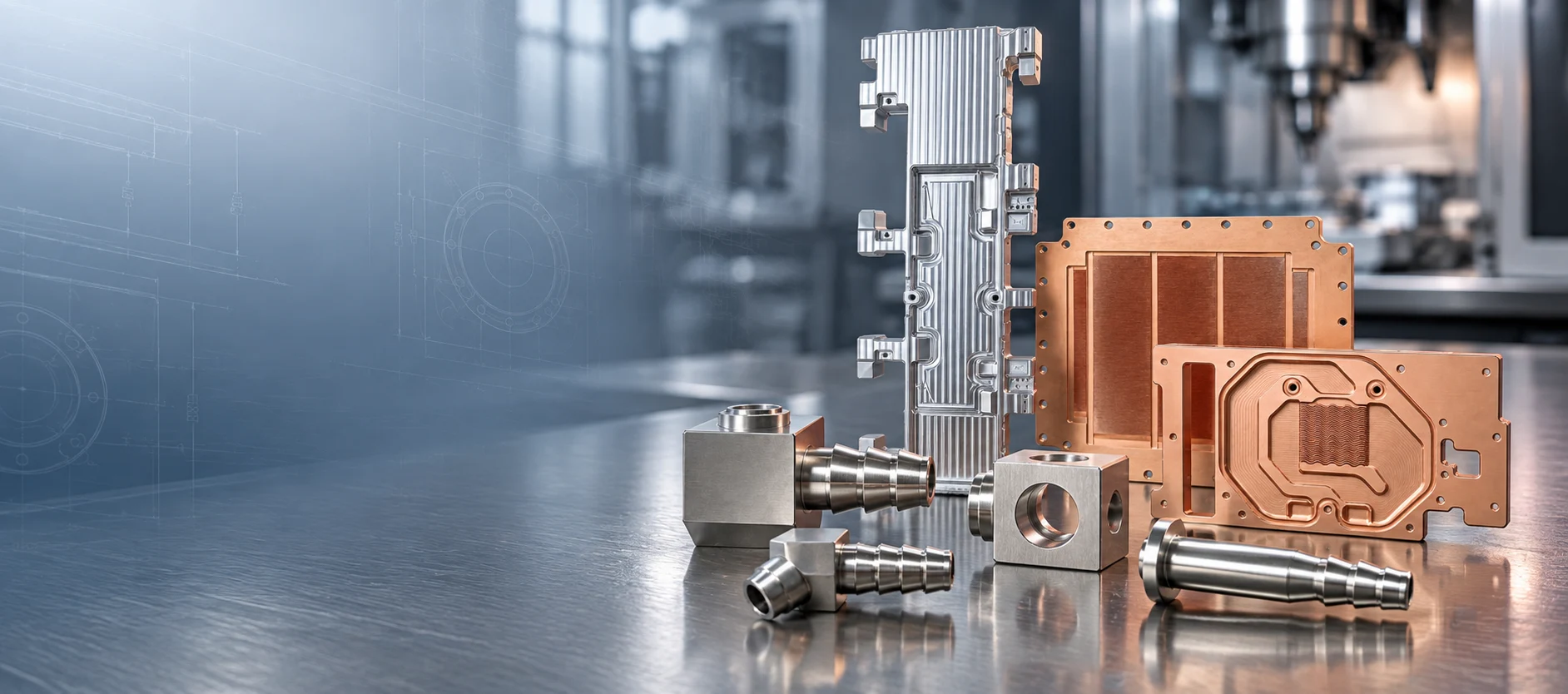

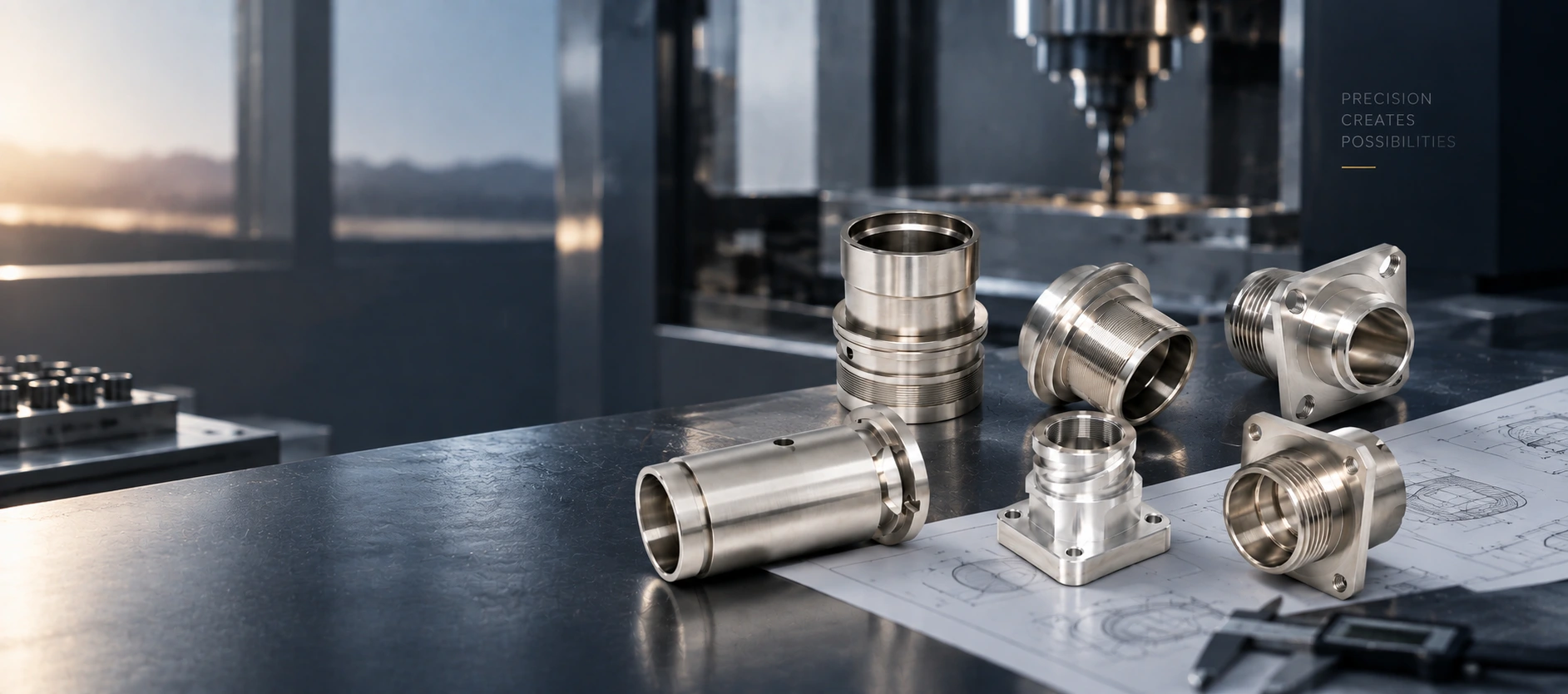

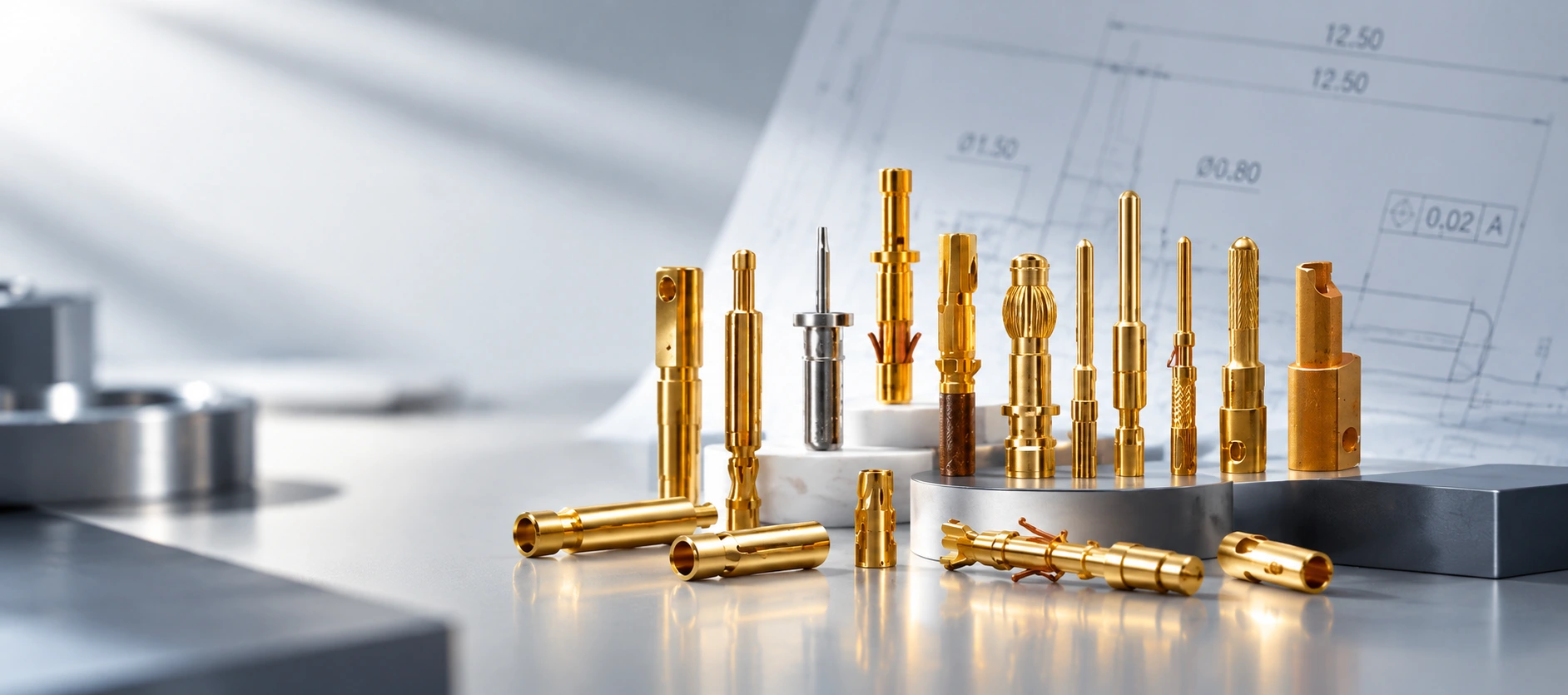

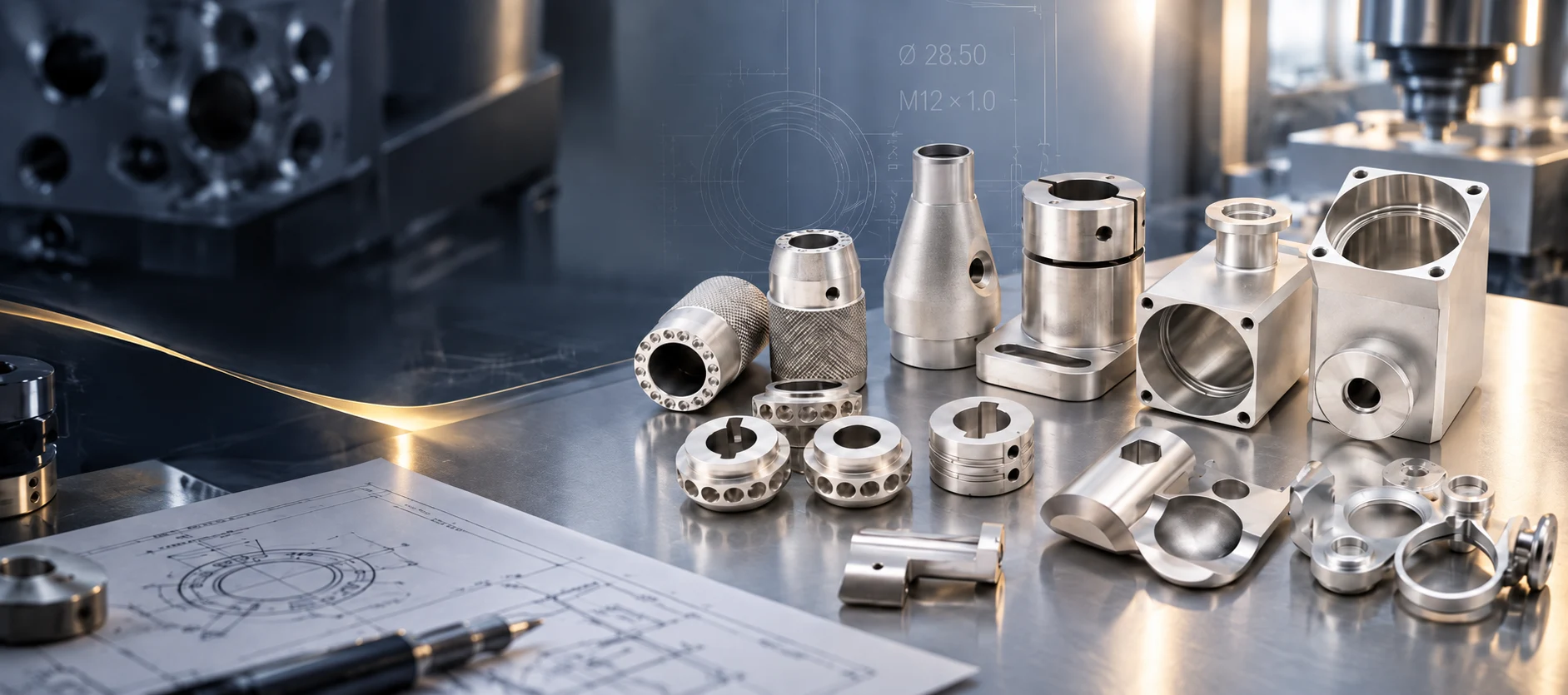

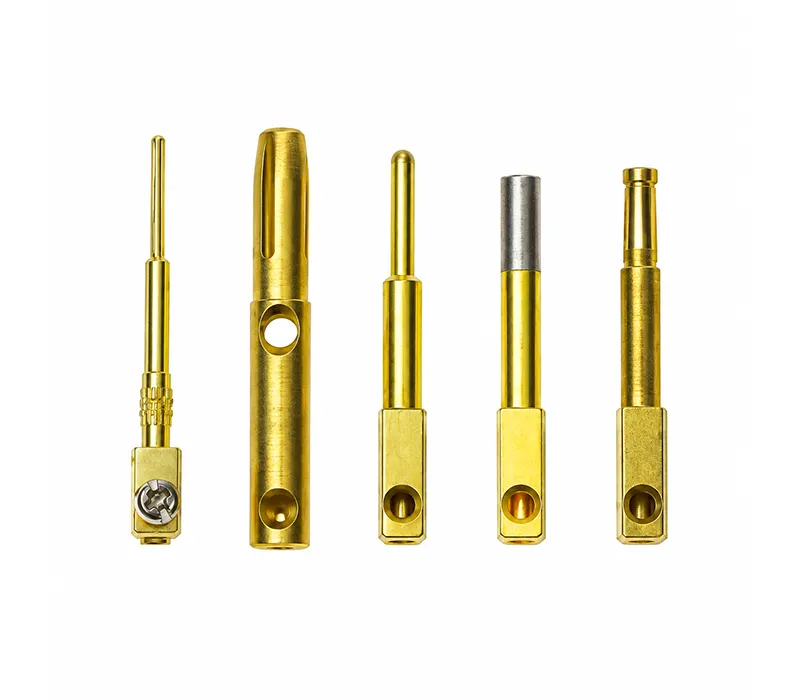

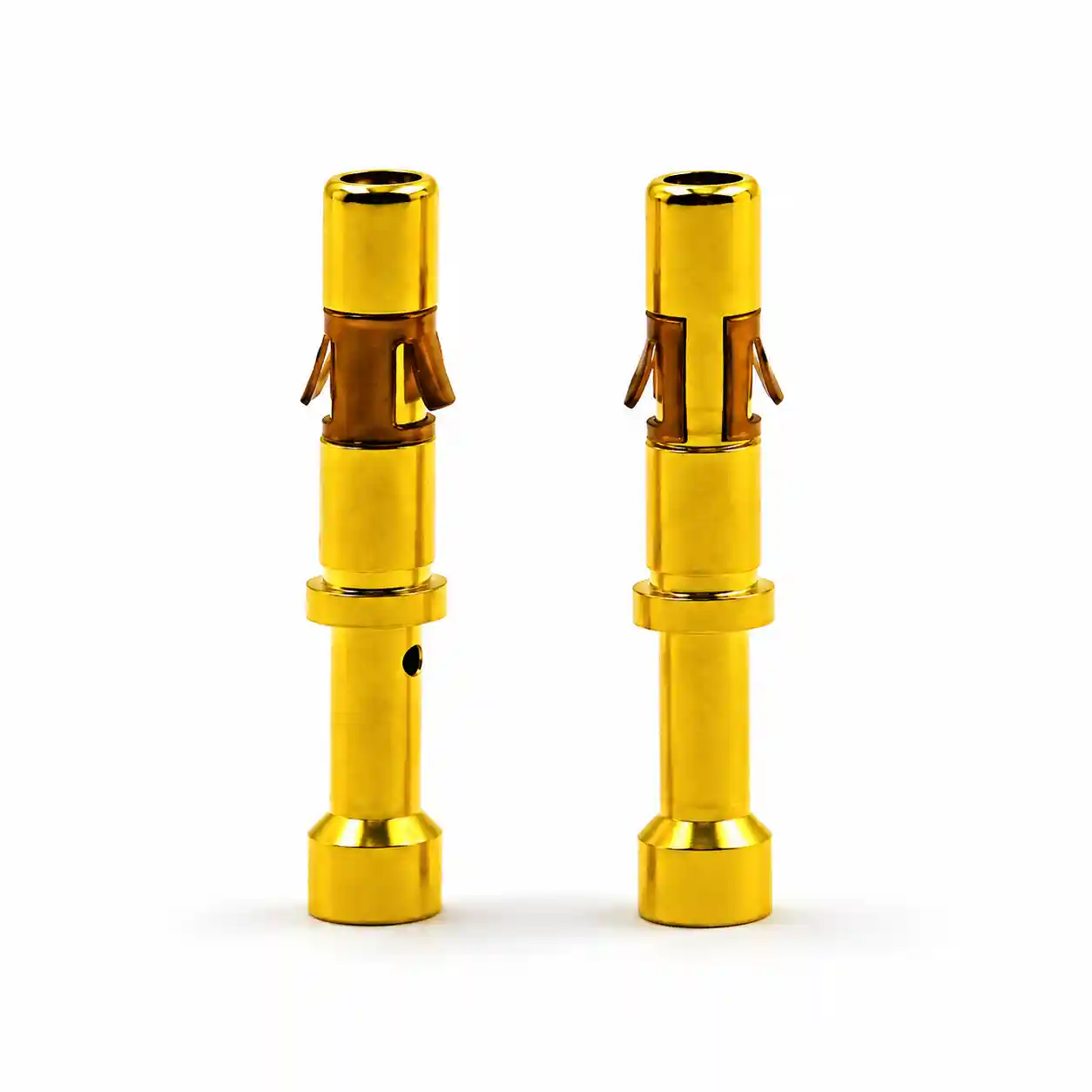

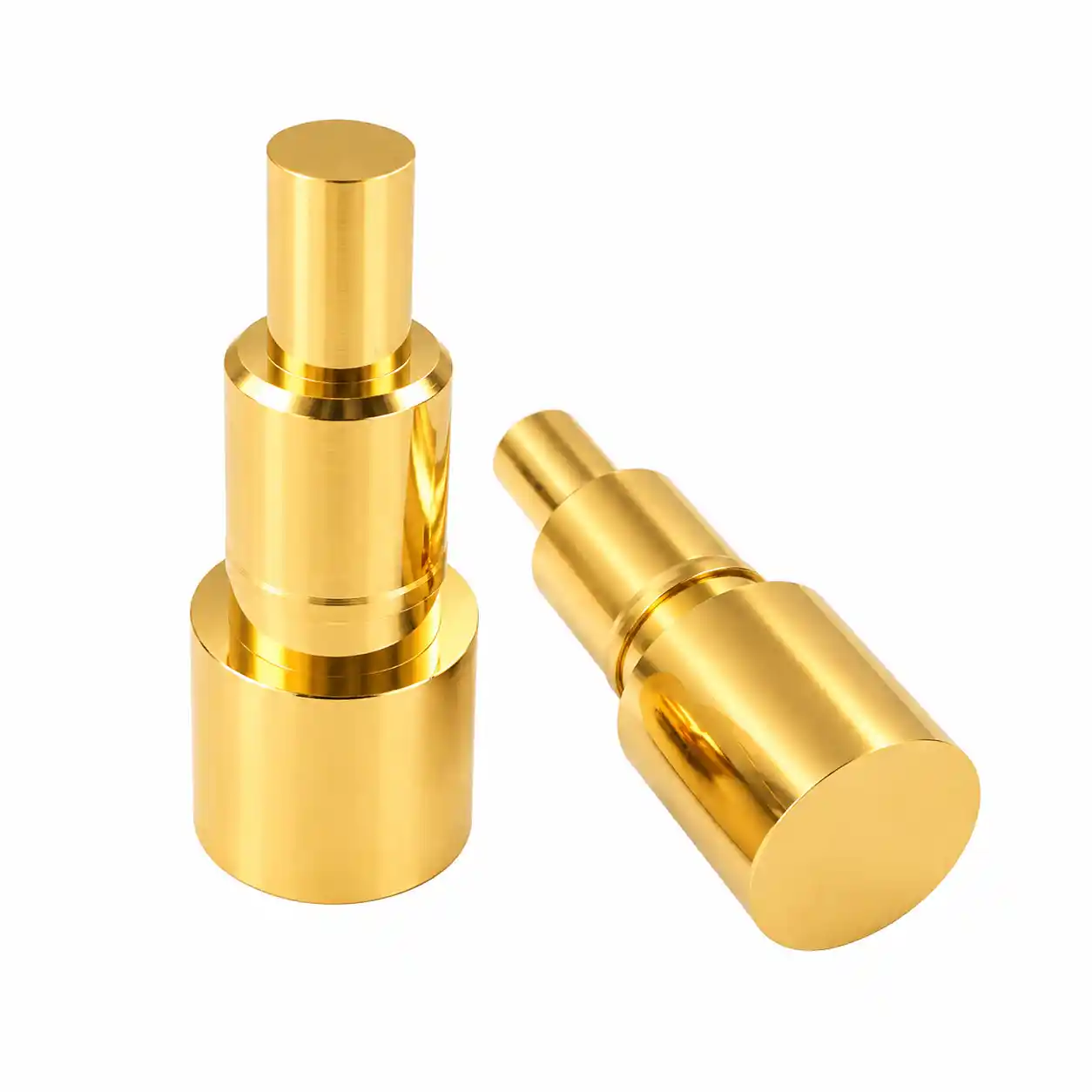

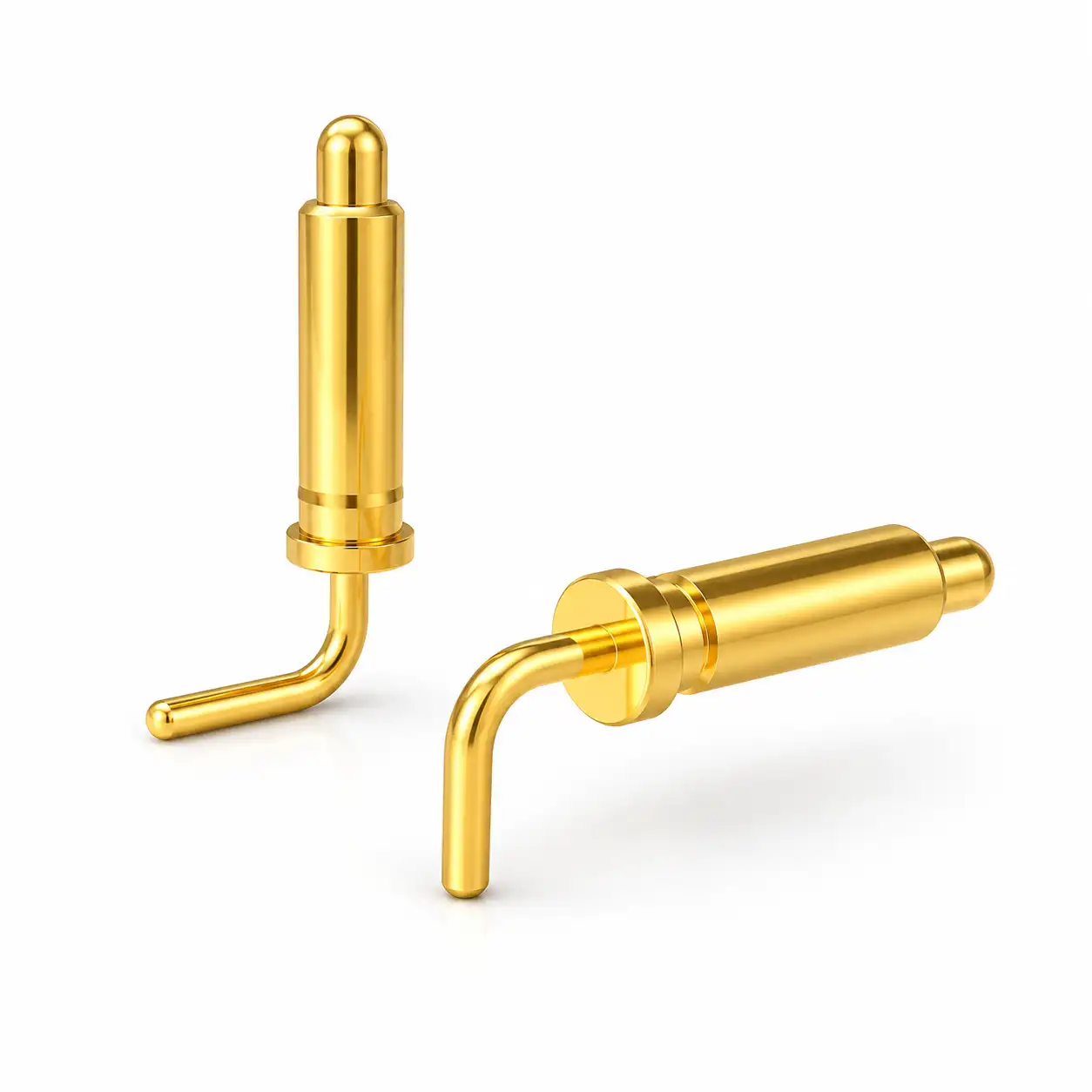

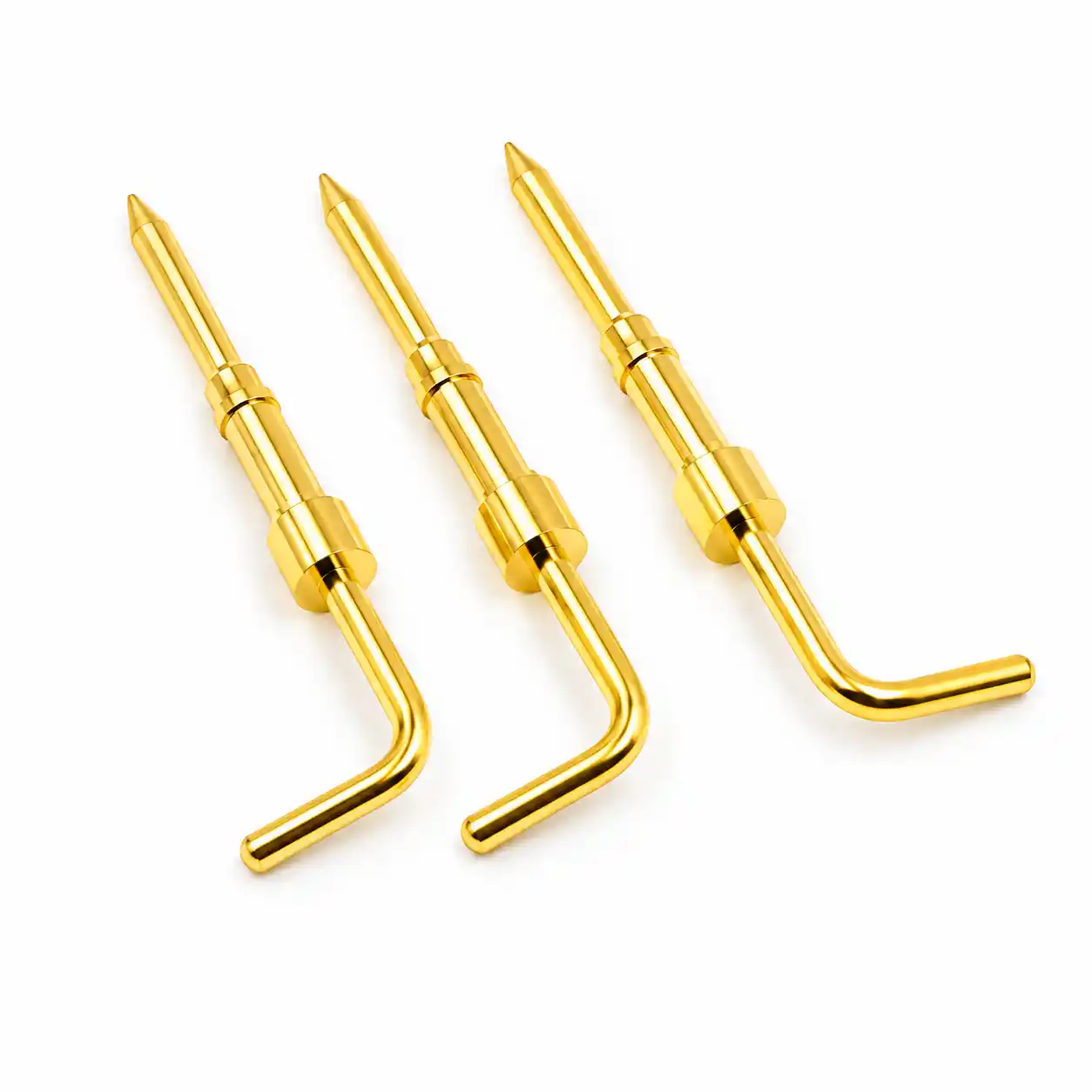

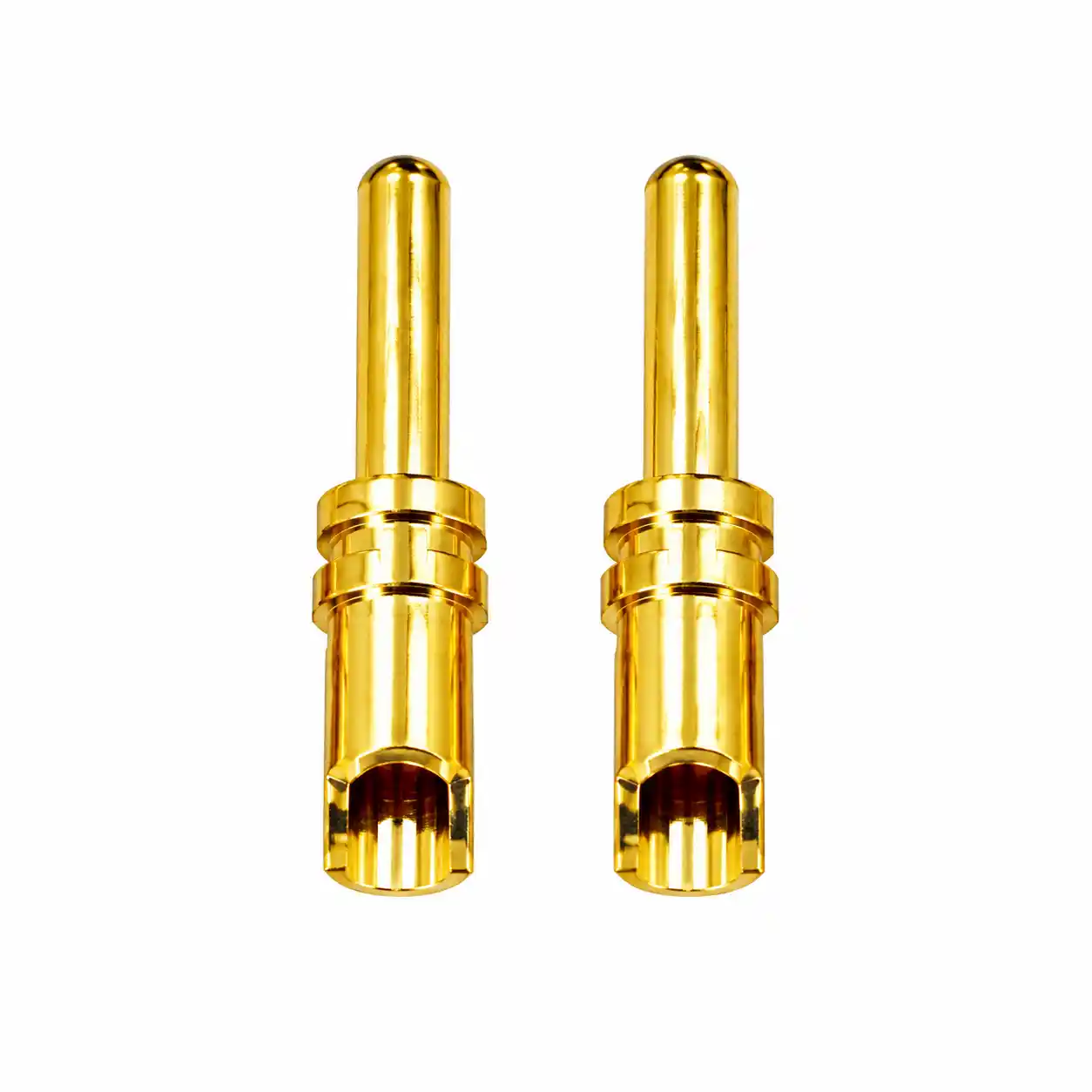

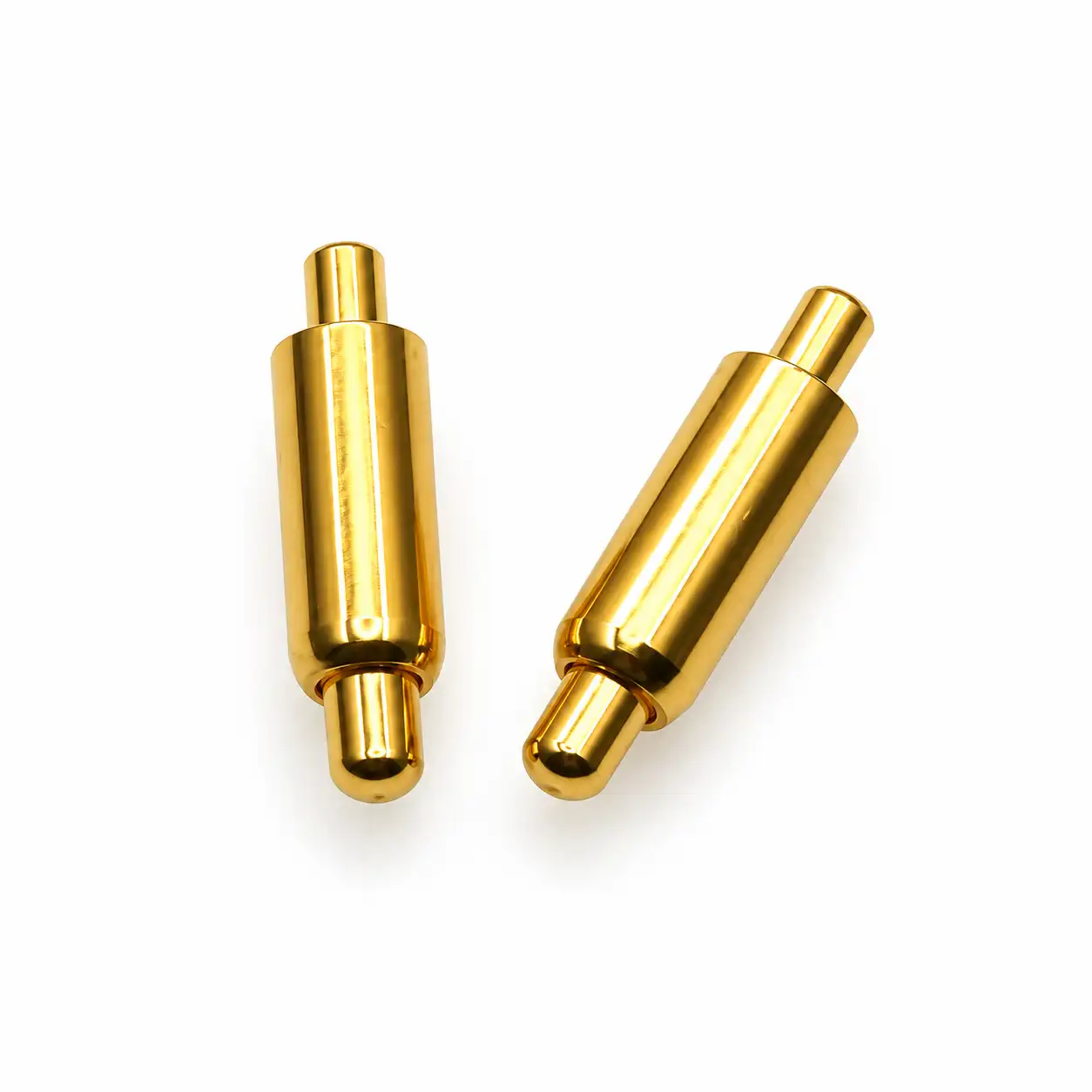

Connector Pins & Sockets Precision male & female pins, new energy/automotive-grade contacts, for high-reliability applications CNC Machined Parts CNC turning, automatic lathe processing, custom precision hardware, supporting multi-spec customization Pogo Pins Standard/custom/high-current/high-frequency/test & charging spring-loaded pins, long life & superior stability Pogo Pin Connector Solutions 1–20Pin connectors, pogo pin modules, customized assembly solutions Custom Connector Solutions OEM/ODM, rapid prototyping, full-process design & manufacturing, industry-specific customization Backed by digital production lines and strict quality inspection, Jingcheng serves global customers with high precision, fast delivery and strong customization capabilities

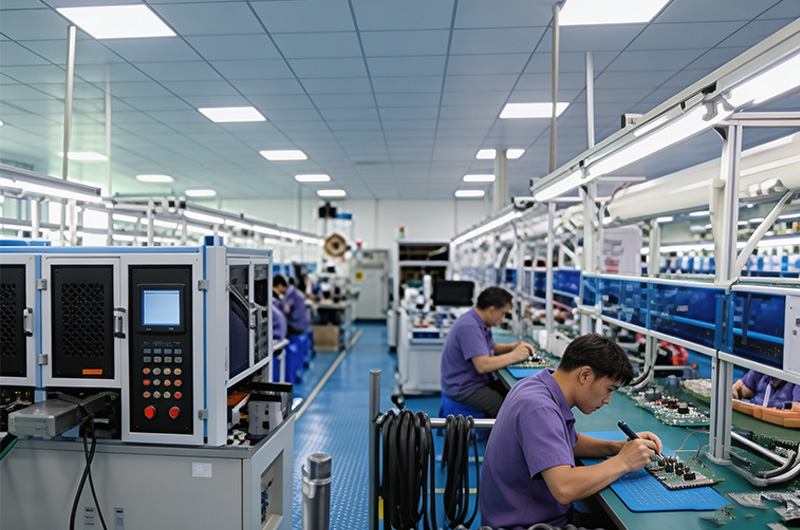

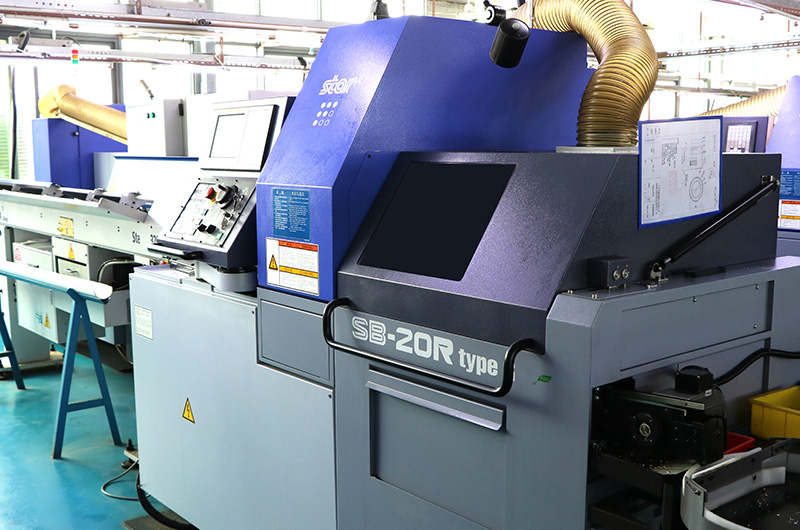

To address the challenges of multi-variety, small-batch, high-precision in the connector industry, Dongguan Jingcheng Industrial has built an integrated digital production system. By introducing intelligent MES and IoT equipment, we achieve real-time equipment monitoring, data collection and intelligent scheduling, breaking down data silos. Automated production lines coupled with a digital dispatching system have increased production efficiency by over 30%, significantly reduced labor costs, shortened lead times, and ensured consistent batch quality. From CNC machining to pin assembly, full-process digital control enables high precision and high efficiency to coexist, rapidly responding to urgent orders and customized demands in new energy, automotive electronics and other fields.
